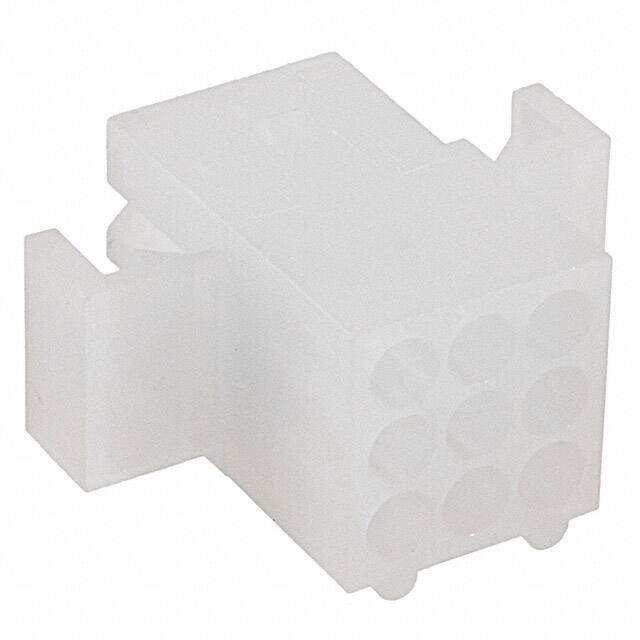

770427-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RECEPT W/DETENT 9POS .062
PDF
/
Buying Options
Total Price: USD $0.37
Unit Price: USD $0.374441
≥1 USD $0.374441
≥10 USD $0.353244
≥100 USD $0.333254
≥500 USD $0.314388
≥1000 USD $0.296588
Inventory: 1453
Minimum: 1
-
+
Technical Details
Technical
Voltage - Rated 250V
Number of Rows 3
Color Natural
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 9
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Commercial .062 Pin and Socket
Published 1997
Packaging Bulk
Insulation Diameter 2.794 mm
Contact Termination Crimp
Circuit Application Power
Sealable No
Insertion Force-Max 11.12 N
Max Voltage Rating (DC) 250.25kV
Wire/Cable Gauge 18 AWG
Durability 10 Cycles
Wire Gauge (Min) 18 AWG
Wire Gauge (Max) 30 AWG
Wire/Cable Type Discrete
Dielectric Withstanding Voltage 1000VAC V
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 250V
ELV Compliant
Note Contacts Not Included
Row Spacing 0.145 (3.68mm)
Rated Current (Signal) 5A
Empty Shell NO
Contact Gender Male
Approval Agency UL
Depth 19.81mm
Orientation Straight
Total Number of Contacts 9
Pitch 0.145 3.68mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male or Female
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating GOLD/TIN
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
Physical
Housing Material Nylon
Shell Material POLYAMIDE
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 12 Weeks
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Dimensions
Width 12.45mm
Length 20.07mm
Height 12.57mm
