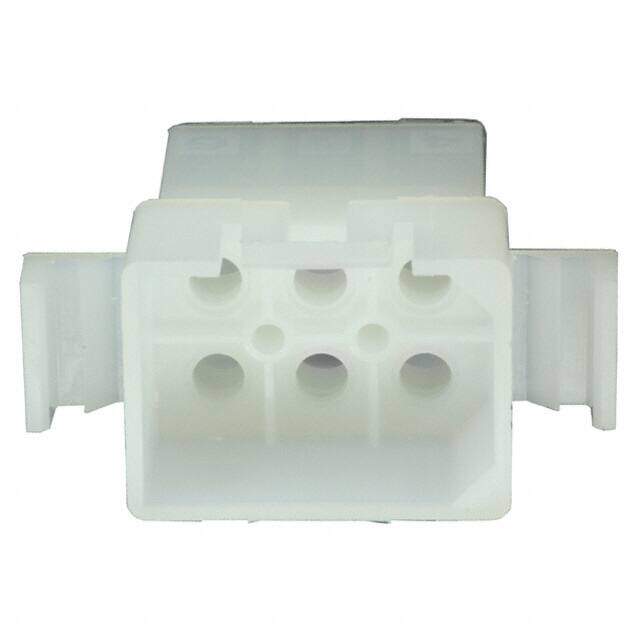

770373-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN PLUG W/DETENT 6POS .093
PDF
/
Buying Options
Total Price: USD $0.41
Unit Price: USD $0.4136
≥1 USD $0.4136
≥10 USD $0.40304
≥100 USD $0.40128
≥500 USD $0.387552
≥1000 USD $0.324984
≥3000 USD $0.304691
Inventory: 1363
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Dimensions
Panel Thickness 1.57mm
Width 16.28mm
Length 22.5mm
Technical
Contact Retention Without
Number of Signal Positions 6
Contact Termination Crimp
Sealable No
Max Voltage Rating (AC) 250V
ELV Compliant
Note Contacts Not Included
Row Spacing 0.250 (6.35mm)
Operating Supply Voltage 600V
Empty Shell NO
Contact Gender Male
Mating Information MULTIPLE MATING PARTS AVAILABLE
Approval Agency CSA
Current Rating 13A
Depth 28.07mm
Orientation Straight
Total Number of Contacts 6
Pitch 6.35mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male or Female
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating TIN/GOLD (30) OVER NICKEL
Fastening Type Detent Lock
Additional Feature AMP, COMPATIBLE CONTACTS: 350418-1; 770147-1
Voltage - Rated 250V
Number of Rows 2
Color Natural
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3/e4
Series Commercial .093 Pin and Socket
Published 2008
Packaging Bulk
Physical
Housing Material Nylon
Shell Material POLYAMIDE
Mounting Type Panel Mount, Snap-In
Mount Panel
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 12 Weeks
