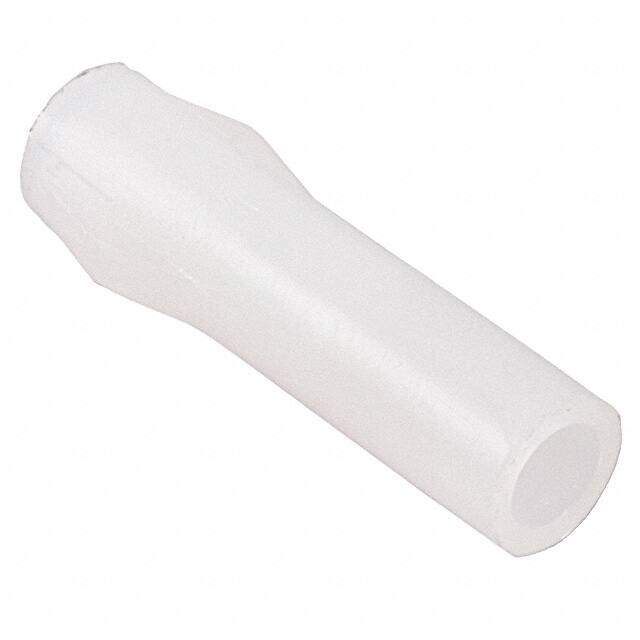

770277-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RECEPT W/DETENT 1POS .062
PDF
/
Buying Options
Total Price: USD $0.34
Unit Price: USD $0.336102
≥1 USD $0.336102
≥10 USD $0.275709
≥30 USD $0.249451
≥100 USD $0.216629
Inventory: 100
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Technical
Packaging Bulk
Published 1997
Series Commercial .062 Pin and Socket
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Natural
Voltage - Rated 250V
HTS Code 8536.69.40.30
Fastening Type Locking Ramp
Voltage - Rated DC 250V
Contact Type Male or Female
Pitch 3.68mm
Orientation Straight
Depth 5.16mm
Current Rating 7A
Approval Agency CSA
Number of Contacts 1
Contact Gender Female
Operating Supply Voltage 250V
Note Contacts Not Included
ELV Compliant
Max Voltage Rating (AC) 250V
Wire/Cable Type Discrete
Wire Gauge (Max) 18 AWG
Wire Gauge (Min) 30 AWG
Max Voltage Rating (DC) 250V
Sealable No
Circuit Application Power
Contact Termination Crimp
Insulation Diameter 2.79 mm
Contact Retention Without
Dimensions
Length 19.94mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
