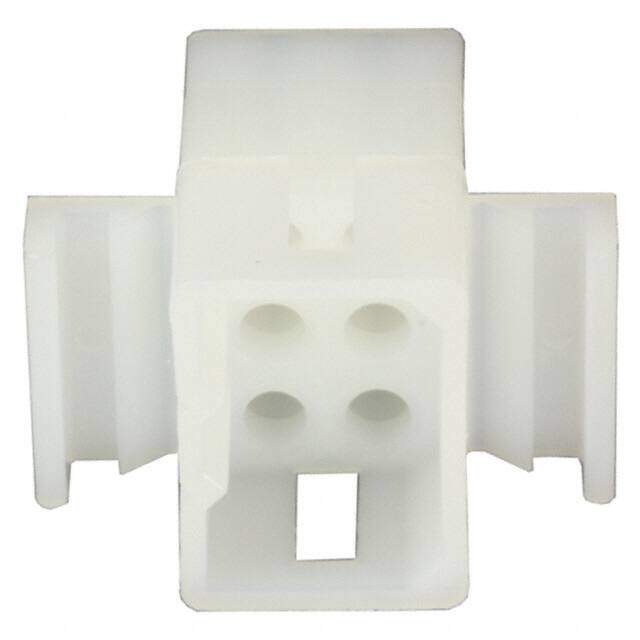

770089-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN PLUG W/DETENT 6POS .093
PDF
/
Buying Options
Total Price: USD $0.27
Unit Price: USD $0.2728
≥1 USD $0.2728
≥10 USD $0.25696
≥100 USD $0.255904
≥500 USD $0.249392
≥1000 USD $0.21384
≥3000 USD $0.193424
Inventory: 726
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Physical
Mount Panel
Mounting Type Panel Mount, Snap-In
Material Nylon
Housing Material Nylon
Technical
Packaging Bulk
Published 1997
Series Commercial .093 Pin and Socket
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug
Number of Positions 6
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Natural
Number of Rows 2
Gender Male
Voltage - Rated 250V
Fastening Type Detent Lock
Voltage - Rated DC 250V
Contact Type Male or Female
Pitch 0.198 5.03mm
Orientation Straight
Depth 27.81mm
Current Rating 13A
Approval Agency CSA
Number of Contacts 6
Contact Gender Male
Housing Color Natural
Operating Supply Voltage 250V
Row Spacing 0.198 (5.03mm)
Note Contacts Not Included
ELV Compliant
Max Voltage Rating (AC) 250V
Wire Gauge (Max) 14 AWG
Wire Gauge (Min) 24 AWG
Sealable No
Contact Termination Crimp
Number of Signal Positions 6
Contact Retention Without
Dimensions
Height 27.81mm
Length 24.64mm
Width 18.67mm
Panel Thickness 2.29mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
