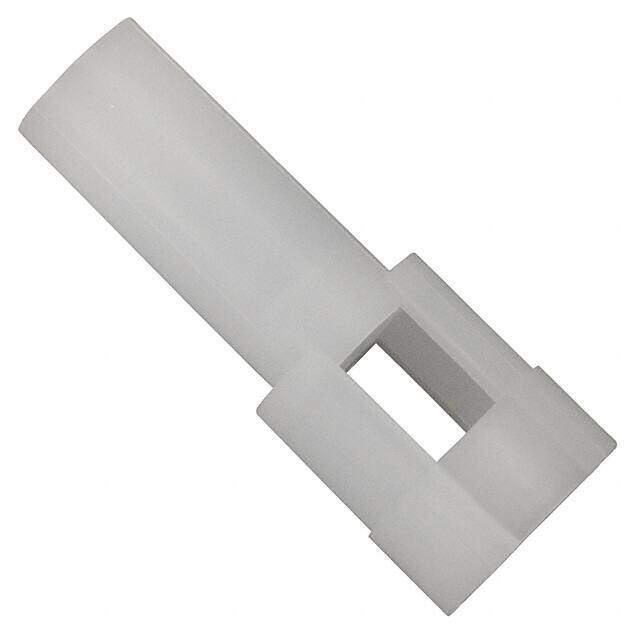

770064-1 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description CONN PLUG W/DETENT 1POS .093
PDF
/
Buying Options
Total Price: USD $0.15
Unit Price: USD $0.1496
≥1 USD $0.1496
≥10 USD $0.13112
≥100 USD $0.130592
≥500 USD $0.129008
≥1000 USD $0.11924
≥3000 USD $0.098032
Inventory: 14004
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Length 24.64mm

Technical

Contact Retention Without
Number of Signal Positions 1
Contact Termination Crimp
Sealable No
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 14 AWG
Max Current Rating 13A
Max Voltage Rating (AC) 250V
Number of Circuits 1
ELV Compliant
Note Contacts Not Included
Operating Supply Voltage 250V
Housing Color Natural
Contact Gender Male
Number of Contacts 1
Approval Agency CSA
Current Rating 13A
Depth 9.14mm
Orientation Straight
Pitch 5.03mm
Contact Type Male or Female
Fastening Type Detent Lock
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Natural
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 1
Connector Type Plug
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Commercial .093 Pin and Socket
Published 2007
Packaging Bulk

Physical

Housing Material Nylon
Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 12 Weeks
