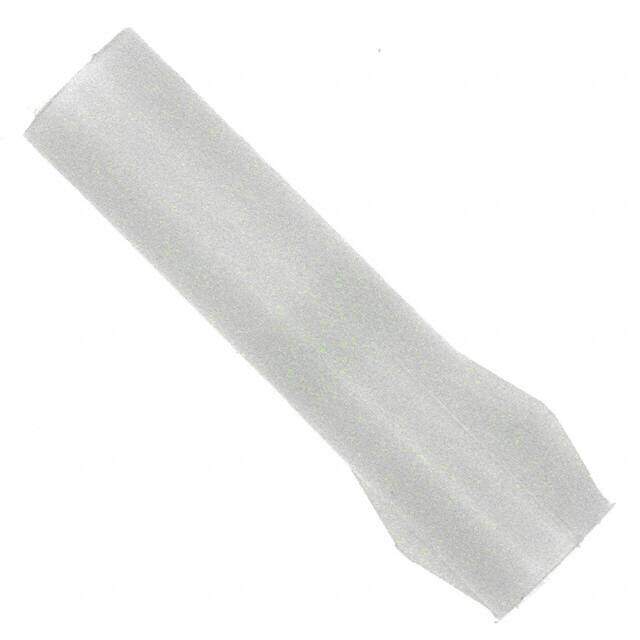

770063-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RECEPT W/DETENT 1POS .093
PDF
/
Buying Options
Total Price: USD $0.18
Unit Price: USD $0.1848
≥1 USD $0.1848
≥10 USD $0.16192
≥100 USD $0.14696
≥500 USD $0.10604
≥1000 USD $0.093958
≥3000 USD $0.083222
Inventory: 1092
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material POLYAMIDE
Housing Material Nylon
Technical
Packaging Bulk
Published 2008
Series Commercial .093 Pin and Socket
JESD-609 Code e3/e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Natural
Voltage - Rated 250V
HTS Code 8536.69.40.30
Fastening Type Locking Ramp
Contact Finish - Mating TIN/GOLD (30) OVER NICKEL
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male or Female
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 5.03mm
Orientation Straight
Depth 25.4mm
Current Rating 13A
Approval Agency CSA
Number of Contacts 1
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-2
Empty Shell NO
Operating Supply Voltage 250V
Note Contacts Not Included
ELV Compliant
Max Voltage Rating (AC) 250V
Max Current Rating 13A
Sealable No
Contact Termination Crimp
Contact Retention Without
Dimensions
Length 25.4mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
