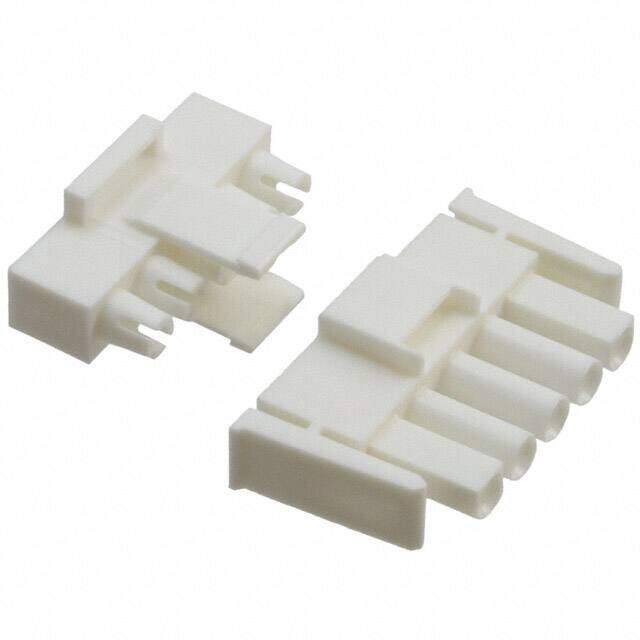

770016-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN PLUG 5 POS UMNL-II (2PC)
PDF
/
Buying Options
Total Price: USD $1.06
Unit Price: USD $1.0648
≥1 USD $1.0648
≥10 USD $0.99704
≥100 USD $0.85756
≥500 USD $0.676764
≥1000 USD $0.611864
≥3000 USD $0.573681
Inventory: 55
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Contact Material Brass
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material POLYAMIDE
Housing Material Nylon
Technical
Packaging Bulk
Published 1997
Series Universal MATE-N-LOK II
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Max Operating Temperature 120°C
Min Operating Temperature -55°C
Color White
Number of Rows 1
Voltage - Rated 600V
Fastening Type Latch Lock
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male or Female
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 6.35mm
Orientation Straight
Current Rating 31A
Approval Agency UL
Number of Contacts 5
Contact Gender Male
UL Flammability Code 94V-0
Empty Shell NO
Operating Supply Voltage 600V
Note Contacts Not Included
ELV Compliant
Max Voltage Rating (AC) 600V
Max Current Rating 31A
Sealable No
Contact Termination Crimp
Contact Retention Without
VDE Tested Yes
Dimensions
Height 14.7mm
Length 33mm
Width 21.5mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
