5-2232263-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

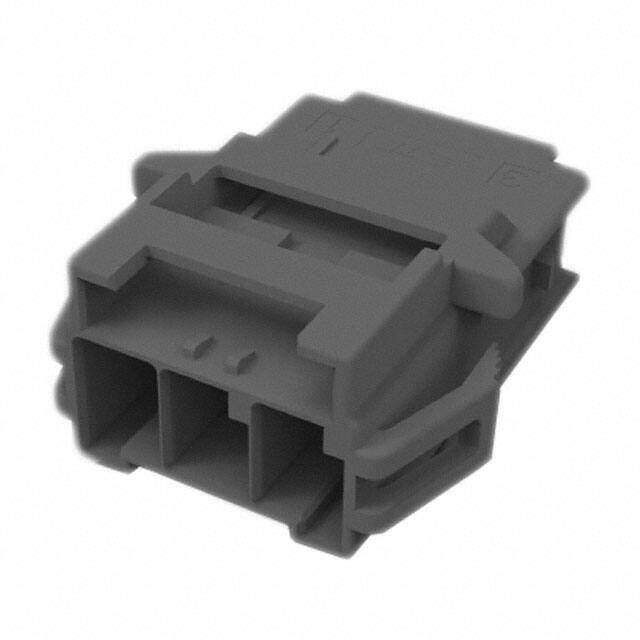

TE CONNECTIVITY 5-2232263-3Connector Housing, Power Triple Lock Series, 3 Ways, 6 mm, PTL Standard Tab Contacts
PDF
/
Buying Options
Total Price: USD $0.71
Unit Price: USD $0.7128
≥1 USD $0.7128
≥10 USD $0.67672
≥100 USD $0.557612
≥500 USD $0.438346
≥1000 USD $0.375725
≥3000 USD $0.369054
Inventory: 1162
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Plating Tin
Mount Panel
Mounting Type Panel Mount, Snap-In
Housing Material Nylon
Technical
Packaging Bulk
Published 2013
Series Power Triple Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Gray
Number of Rows 1
Fastening Type Latch Lock
Voltage - Rated DC 600V
Contact Type Tab
Pitch 0.236 6.00mm
Current Rating 20A
Voltage - Rated AC 600V
Approval Agency VDE
Housing Color Grey
Operating Supply Voltage 600V
Row Spacing 8.1 mm
Note Contacts Not Included
ELV Compliant
Sealable No
Circuit Application Power
Contact Termination Crimp
Halogen Free Not Halogen Free
Number of Power Positions 3
Contact Retention Without
Dimensions
Height 14.95mm
Panel Thickness 2mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
