5-1971876-7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

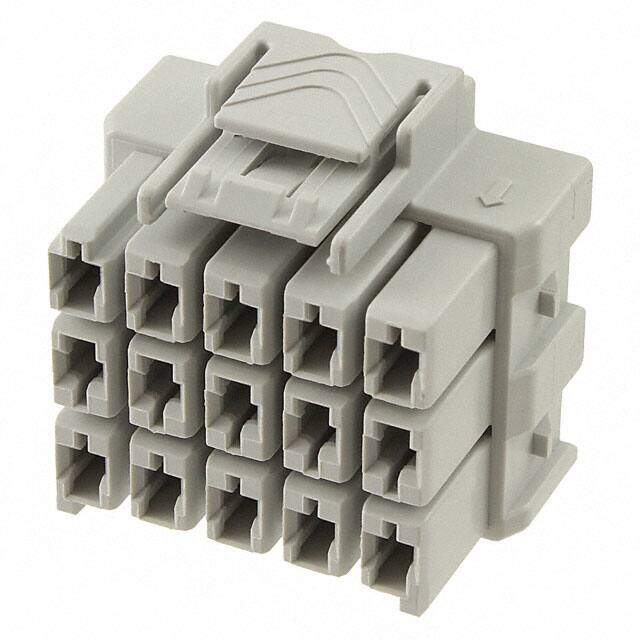

Headers & Wire Housings 3x5 plug housing lgr Key A
PDF
/
Buying Options
Total Price: USD $1.09
Unit Price: USD $1.0912
≥1 USD $1.0912
≥10 USD $1.0164
≥100 USD $0.770739
≥500 USD $0.690351
≥1000 USD $0.624149
≥3000 USD $0.5852
Inventory: 879
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Technical
Packaging Bulk
Published 2014
Series Power Triple Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug
Number of Positions 15
Max Operating Temperature 150°C
Min Operating Temperature -55°C
Color Gray
Number of Rows 3
Fastening Type Latch Holder
Voltage - Rated DC 600V
Contact Type Female Blade Socket
Pitch 0.236 6.00mm
Current Rating 20A
Voltage - Rated AC 600V
Approval Agency UL
Number of Contacts 15
Housing Color Grey
Operating Supply Voltage 600V
Row Spacing 0.319 (8.10mm)
Note Contacts Not Included
ELV Compliant
Sealable No
Circuit Application Power
Contact Termination Crimp
Halogen Free Halogen Free
Number of Power Positions 15
Contact Retention Without
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
