4-928247-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

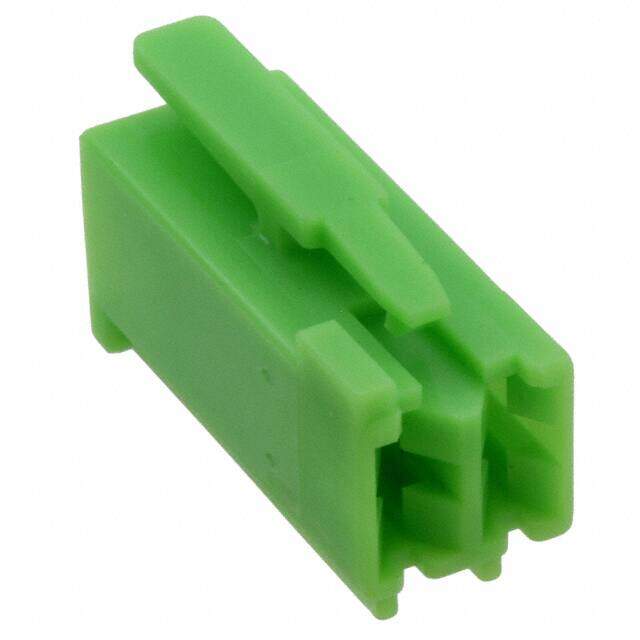

Automotive Connectors 2P ST-TIMER GEH
PDF
/
Buying Options
Total Price: USD $0.32
Unit Price: USD $0.319872
≥1 USD $0.319872
≥10 USD $0.301773
≥100 USD $0.284684
≥500 USD $0.268571
≥1000 USD $0.253367
Inventory: 9498
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Dimensions
Length 9.906mm
Height 14.4mm
Technical
Mating Retention With
Contact Termination Crimp
Sealable No
ELV Compliant
Note Contacts Not Included
Empty Shell NO
Housing Color Green
Total Number of Contacts 2
Pitch 0.197 5.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Latch Lock
Additional Feature POLARIZED, LATCH
Number of Rows 1
Color Yellow
Number of Positions 2
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Standard Timer
Published 2004
Packaging Bulk
Physical
Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 16 Weeks
