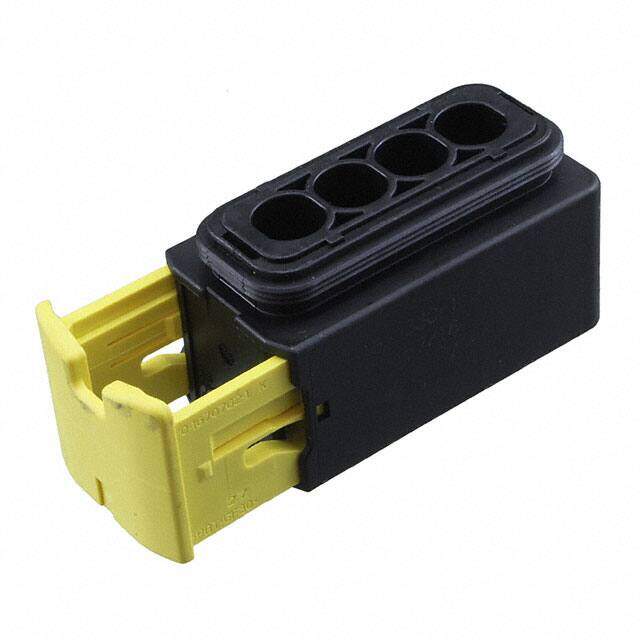

4-1564330-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RCPT HSG 4POS 9MM
PDF
/
Inventory: 8467
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Width 25.7mm
Length 67.2mm
Height 31.242mm
Technical
Polarized Yes
Hybrid Connector No
Mating Tab Width 6.3mm
Contact Termination Crimp
Circuit Application Power
ELV Compliant
Note Contacts Not Included
Housing Color Black
Pitch 0.354 9.00mm
Contact Type Female Socket
Fastening Type Slide-On
Number of Rows 1
Color Blue
Min Operating Temperature -40°C
Max Operating Temperature 140°C
Number of Positions 4
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Sealed
Series Heavy Duty Sealed Connector Series (HDSCS), MCP 6.3
Published 2012
Packaging Bulk
Physical
Body Material PBT
Mounting Type Free Hanging (In-Line)
