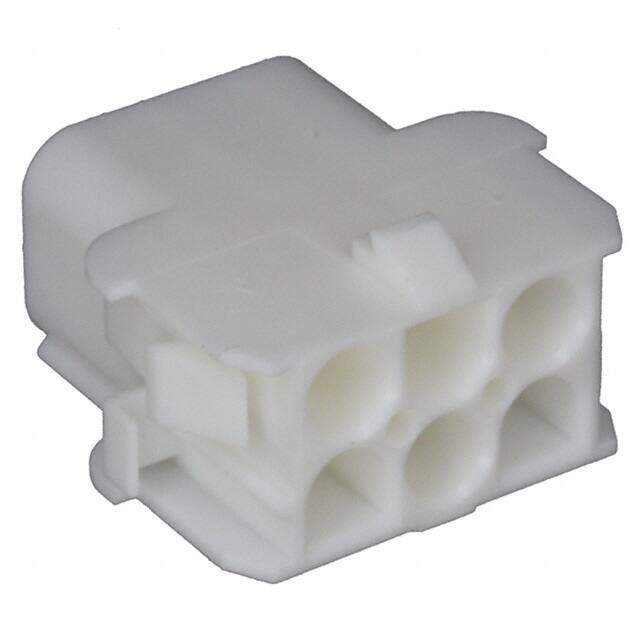

350781-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN CAP 6POS 94V-0 UNI-MATE
PDF
/
Buying Options
Total Price: USD $0.6
Unit Price: USD $0.5984
≥1 USD $0.5984
≥10 USD $0.57464
≥100 USD $0.572704
≥500 USD $0.553344
≥1000 USD $0.463936
≥3000 USD $0.434931
Inventory: 1129
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Panel Thickness 2.29mm
Width 14mm
Length 27.4mm
Technical
VDE Tested Yes
Contact Retention Without
Contact Termination Crimp
Sealable No
Durability 50 Cycles
Wire Gauge (Min) 10 AWG
Wire Gauge (Max) 30 AWG
Dielectric Withstanding Voltage 5000VAC V
Max Current Rating 19A
Max Voltage Rating (AC) 600V
ELV Compliant
Body/Shell Style PLUG
Note Contacts Not Included
Row Spacing 0.250 (6.35mm)
Insulation Resistance 1GOhm
Contact Resistance 3.5MOhm
Operating Supply Voltage 600V
Empty Shell NO
UL Flammability Code 94V-0
Contact Gender Female
Body Breadth 0.55 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Number of Contacts 6
Approval Agency CSA
Reliability COMMERCIAL
Voltage - Rated AC 600V
Number of Conductors ONE
Current Rating 19A
Depth 27.43mm
Orientation Straight
Pitch 6.35mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male or Female
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated DC 600V
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
Additional Feature MATE-N-LOK, POLARIZED
Number of Rows 2
Color Natural
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Universal MATE-N-LOK
Published 1997
Packaging Bulk
Physical
Material Nylon
Mounting Type Panel Mount, Snap-In
Mount Panel
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 6 Weeks
