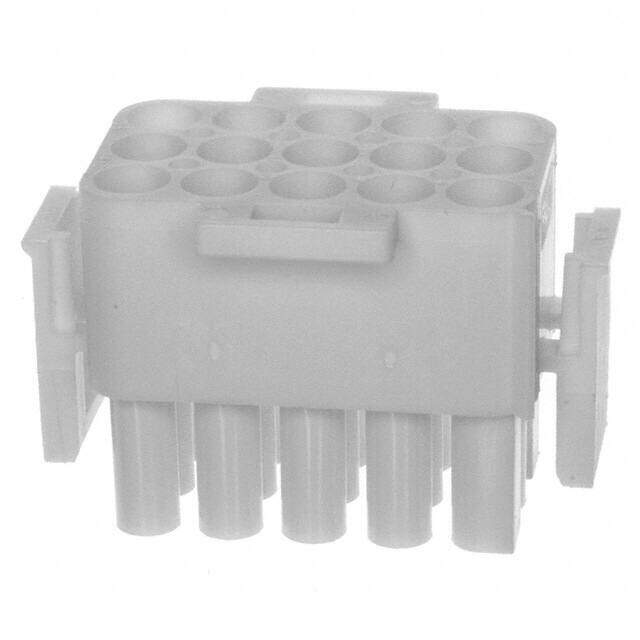

350736-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN PLUG 15POS 94V-0 UNI-MATE
PDF
/
Buying Options
Total Price: USD $0.93
Unit Price: USD $0.9328
≥1 USD $0.9328
≥10 USD $0.8888
≥100 USD $0.849728
≥500 USD $0.837936
≥1000 USD $0.732248
≥3000 USD $0.70481
Inventory: 2309
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Length - Termination 0.46 inch
Technical
Contact Retention Without
Contact Termination Crimp
Sealable No
Insertion Force-Max 22.24 N
Durability 50 Cycles
Dielectric Withstanding Voltage 5000VAC V
Note Contacts Not Included
Row Spacing 0.250 (6.35mm)
Insulation Resistance 1GOhm
Contact Resistance 3.5mOhm
Operating Supply Voltage 600V
Body Depth 1.079 inch
Empty Shell NO
Housing Color Natural, White
UL Flammability Code 94V-0
Operating Temperature (Min) -55°C
Body Breadth 1.079 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Operating Temperature (Max) 105°C
Number of Contacts 15
Reliability COMMERCIAL
Voltage - Rated AC 600V
Reference Standard UL, CSA
Number of Conductors ONE
Current Rating 15A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male or Female
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Fastening Type Latch Lock
Gender Male
Number of Rows 3
Color Natural
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Universal MATE-N-LOK
Published 1999
Packaging Bulk
Physical
Mounting Option 1 FRICTION RAMP
Housing Material Nylon
Shell Material POLYAMIDE
Mounting Type Free Hanging (In-Line)
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 4 Weeks
