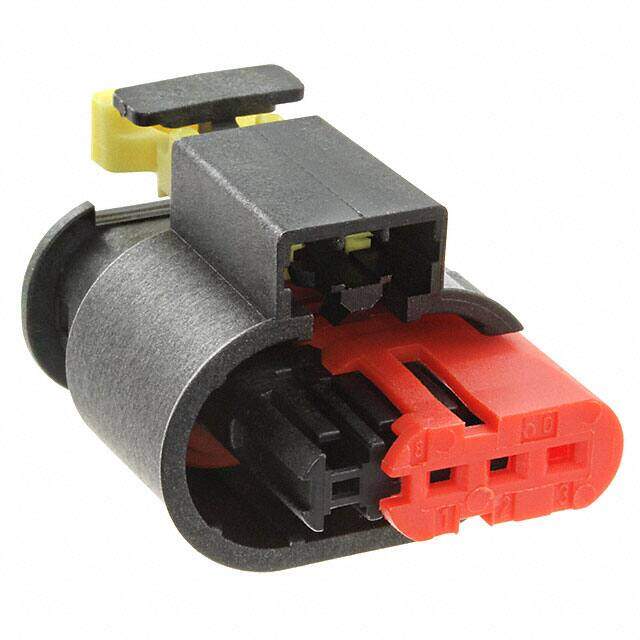

284425-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
3 POS CONNECTOR FOR INJECTION
PDF
/
Buying Options
Total Price: USD $2.29
Unit Price: USD $2.288
≥1 USD $2.288
≥10 USD $2.04248
≥100 USD $2.032096
≥500 USD $2.011152
≥1000 USD $1.84536
≥3000 USD $1.834976
Inventory: 468
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 26.25mm
Length 35.51mm
Height 22.6mm
Technical
Polarized Yes
Hybrid Connector No
Mating Tab Width 1.4986mm
Contact Termination Crimp
Circuit Application Signal
Max Voltage Rating (DC) 24V
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 20 AWG
ELV Compliant
Note Contacts Not Included
Approval Agency IEC
Depth 26.2mm
Orientation Straight
Pitch 3.9878mm
Option GENERAL PURPOSE
Contact Type Tab
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Latch Lock
Gender Female
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 140°C
Number of Positions 3
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series SSC
Published 1995
Packaging Bulk
Physical
Housing Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 16 Weeks
