282089-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

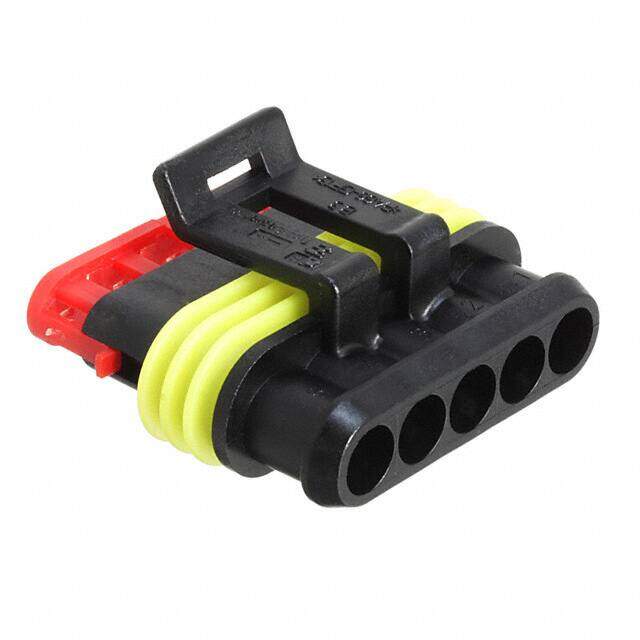

AMP FROM TE CONNECTIVITY 282089-1 Connector Housing, SUPERSEAL 1.5 Series, Plug, 5 Ways, 6 mm, Plug & Socket Connectors
PDF
/
Buying Options
Total Price: USD $525
Unit Price: USD $0.525
≥1000 USD $0.525
Inventory: 2082
Minimum: 1000
-
+
Technical Details
Compliance
Ratings IP67
Lead Free Not Applicable
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Width 9.3mm
Length 40.9mm
Height 32.2072mm
Technical
Polarized Yes
Hybrid Connector No
Mating Tab Width 1.4986mm
Contact Design PREASSEM CONN
Contact Termination Crimp
Circuit Application Signal
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 22 AWG
Polarization Key POLARIZED HOUSING
ELV Compliant
Note Contacts Not Included
Insulation Resistance 200MOhm
Contact Resistance 3mOhm
Empty Shell NO
Body Breadth 0.366 inch
Reliability COMMERCIAL
Current Rating 14A
Orientation Straight
Total Number of Contacts 5
Pitch 0.236 6.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated DC 24V
Subcategory Headers and Edge Type Connectors
Fastening Type Latch Lock
Gender Female
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Number of Positions 5
Connector Type Plug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Superseal
Published 1998
Packaging Bulk
Physical
Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 15 Weeks
