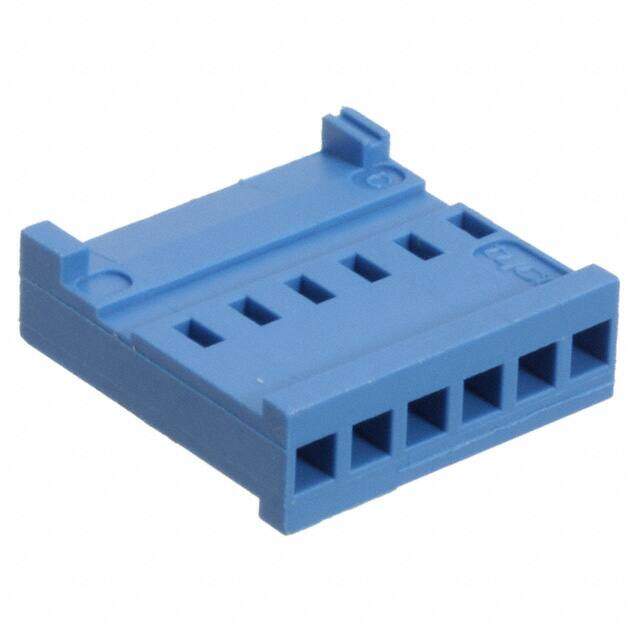

281838-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Conn Housing RCP 6 POS 2.54mm Crimp ST Loose Piece
PDF
/
Buying Options
Total Price: USD $0.5
Unit Price: USD $0.5016
≥1 USD $0.5016
≥10 USD $0.46816
≥100 USD $0.332886
≥500 USD $0.291755
≥1000 USD $0.258474
≥3000 USD $0.242343
Inventory: 57239
Minimum: 1
-
+
Technical Details
Technical
Contact Design PREASSEM CONN
Mating Retention Without
Contact Termination Crimp
Contact Current Rating 3A
Number of Poles 6
Wire/Cable Gauge 24 AWG
Durability 400 Cycles
ELV Compliant
Note Contacts Not Included
Row Spacing 2.54 mm
Insulation Resistance 1GOhm
Contact Resistance 30mOhm
Rated Current (Signal) 3A
UL Flammability Code 94V-0
Operating Temperature (Min) -55°C
Body Breadth 0.2 inch
Reliability COMMERCIAL
Reference Standard UL, CSA
Current Rating 3A
Depth 15mm
Orientation Straight
Total Number of Contacts 6
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Additional Feature AMPMODU
Number of Rows 1
Color Blue
Connector Type Receptacle
ECCN Code EAR99
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series HE13/HE14
Published 2004
Packaging Bulk
Dimensions
Height 15.0114mm
Length 15.24mm
Width 5.08mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Physical
Housing Material PBT
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging, PCB
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 23 Weeks
