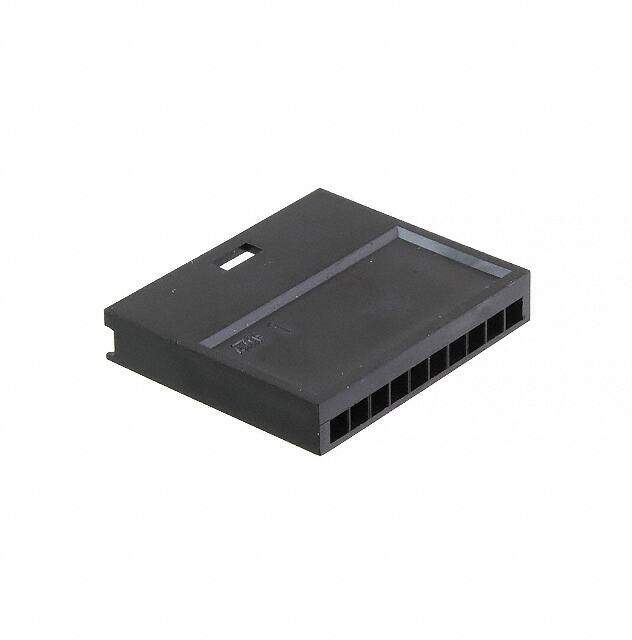

280633 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description CONN PLUG HSG 10POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.99
Unit Price: USD $0.9944
≥1 USD $0.9944
≥10 USD $0.90904
≥100 USD $0.882112
≥500 USD $0.873312
≥1000 USD $0.810568
≥3000 USD $0.797139
Inventory: 4308
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 15 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)

Physical

Contact Material Bronze
Mount Free Hanging, PCB
Mounting Type Free Hanging (In-Line)
Material PPO, Thermoplastic
Housing Material Thermoplastic

Technical

Packaging Bulk
Published 2009
Series AMPMODU Mod II
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Number of Positions 10
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Color Black
Mating Retention With
Contact Termination Crimp
Wire Gauge (Min) 22 AWG
Wire Gauge (Max) 30 AWG
ELV Compliant
Note Contacts Not Included
Row Spacing 2.54 mm
Contact Gender Male
Lead Pitch 2.54mm
Current Rating 3A
Depth 23.8mm
Orientation Straight
Total Number of Contacts 10
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Gender Receptacle
Number of Rows 1

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-1
RoHS Status RoHS Compliant

Dimensions

Length 7.1mm
Height 3.048mm
