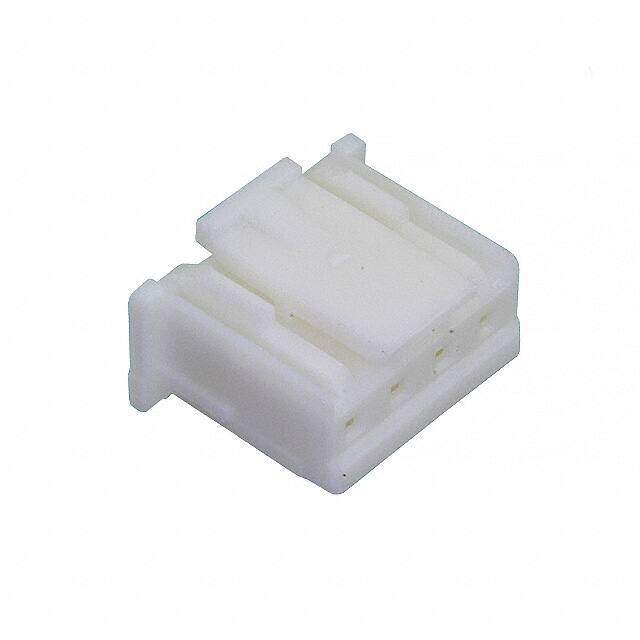

2110992-4 image
Favorite
2110992-4 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description CONN RCPT HOUSING 4POS 2.5MM
PDF
/
Buying Options
Total Price: USD $0.09
Unit Price: USD $0.088
≥1 USD $0.088
≥10 USD $0.03432
≥100 USD $0.032384
≥500 USD $0.030624
≥1000 USD $0.028864
≥3000 USD $0.026893
Inventory: 3851
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Contact Material Bronze
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide

Technical

Packaging Bulk
Published 2004
Series Economy Power 2.5
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 4
Max Operating Temperature -85°C
Min Operating Temperature -25°C
Color White
Number of Rows 1
Voltage - Rated 250V
Fastening Type Latch Lock
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.098 2.50mm
Total Number of Contacts 14
Orientation Straight
Current Rating 7.5A
Contact Gender Female
Note Contacts Not Included
ELV Compliant
Max Voltage Rating (AC) 250V
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 26 AWG
Contact Termination Crimp
Insulation Diameter -1.7 mm

Dimensions

Length 12.3mm
Width 6.85mm

Compliance

REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
