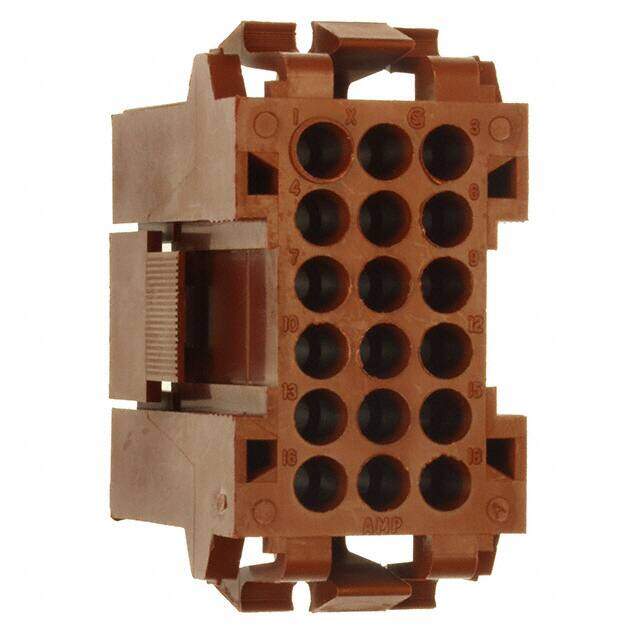

207443-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RECEPT 18 POS METRIMATE
PDF
/
Buying Options
Total Price: USD $6.11
Unit Price: USD $6.1072
≥1 USD $6.1072
≥10 USD $5.32136
≥100 USD $5.181088
≥500 USD $5.041168
≥1000 USD $4.73308
≥3000 USD $4.705078
Inventory: 269
Minimum: 1
-
+
Technical Details
Technical
Contact Termination Crimp and Solder
Durability 2000 Cycles
Wire/Cable Type Discrete
Dielectric Withstanding Voltage 600VAC V
Polarization Key POLAR PIN POSITION
Max Current Rating 14A
Max Voltage Rating (AC) 600V
Note Contacts Not Included
Row Spacing 0.197 (5.00mm)
Insulation Resistance 5000000000Ohm
Operating Supply Voltage 600V
Empty Shell YES
Housing Color Red, Black
UL Flammability Code 94V-0
Approval Agency UL
Reliability COMMERCIAL
Reference Standard UL
Reach Compliance Code not_compliant
Depth 33.02mm
Orientation Straight
Total Number of Contacts 18
Pitch 0.197 5.00mm
Option GENERAL PURPOSE
Mixed Contacts YES
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory Headers and Edge Type Connectors
Fastening Type Latch Lock
Number of Rows 3
Color Black or Red
Min Operating Temperature -55°C
Max Operating Temperature 130°C
Number of Positions 18
Connector Type Receptacle
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Metrimate
Published 1997
Packaging Bulk
VDE Tested Yes
Physical
Housing Material Nylon
Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 7 Weeks
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Panel Thickness 2.29mm
Width 23.8mm
Length 40.77mm
