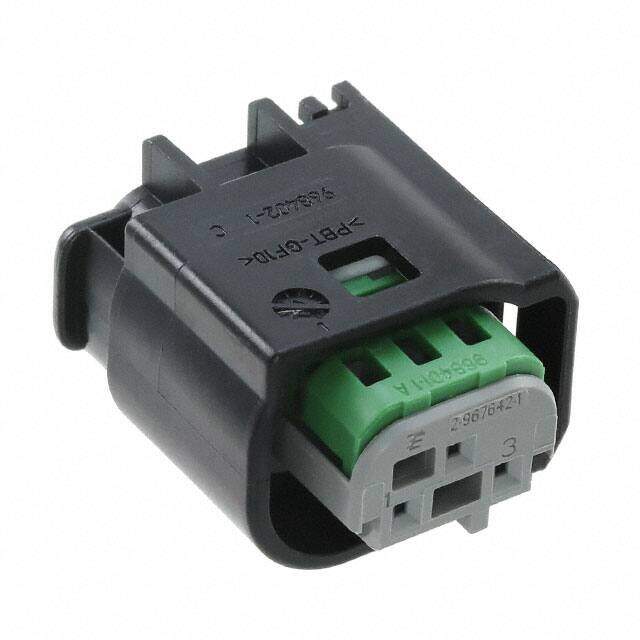

2-967642-1 image
Favorite
2-967642-1 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description Conn Housing RCP 3 POS Crimp ST
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.7744
≥1 USD $0.7744
≥10 USD $0.72512
≥100 USD $0.698016
≥500 USD $0.691152
≥1000 USD $0.623656
≥3000 USD $0.603469
Inventory: 4043
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC

Dimensions

Width 15.2908mm
Length 20mm
Height 24.2062mm

Technical

Serviceable Yes
Hybrid Connector No
Mating Tab Width 635μm
Contact Termination Crimp
Circuit Application Signal
Wire Gauge (Min) 11 AWG
Wire Gauge (Max) 11 AWG
Max Voltage Rating (AC) 50V
ELV Compliant
Note Contacts Not Included
Row Spacing 5.9944 mm
Empty Shell NO
Housing Color Grey
Current Rating 7.5A
Depth 24.2mm
Orientation Straight
Total Number of Contacts 3
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Number of Rows 2
Color Gray
Min Operating Temperature -40°C
Max Operating Temperature 248°C
Number of Positions 3
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Sealed
Series Micro Quadlok
Published 2005
Packaging Bulk

Physical

Body Material PBT
Housing Material Polybutylene
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 13 Weeks
