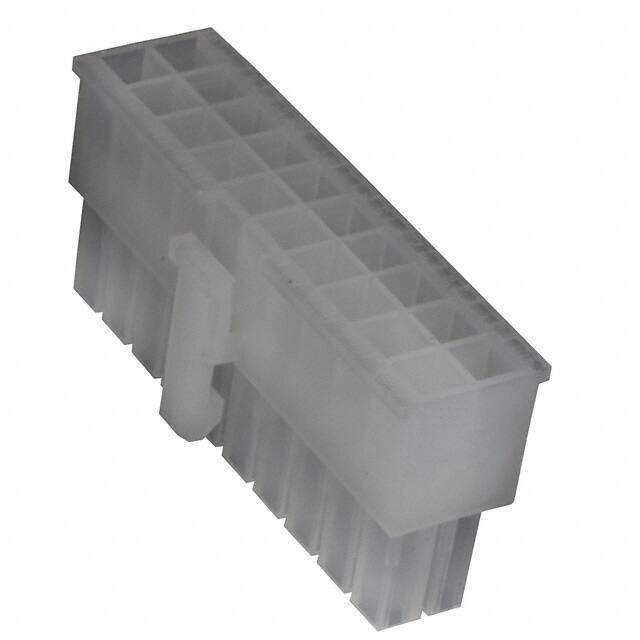

2-794954-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RECEPT 20POS FREE HANGING
PDF
/
Buying Options
Total Price: USD $0.39
Unit Price: USD $0.3872
≥1 USD $0.3872
≥10 USD $0.35288
≥100 USD $0.250114
≥500 USD $0.219217
≥1000 USD $0.195677
≥3000 USD $0.182081
Inventory: 4539
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 20mm
Length 43.2mm
Height 11.7856mm
Technical
Contact Retention Without
Insulation Diameter 3.0988 mm
Contact Termination Crimp
Sealable No
Wire/Cable Type Discrete
Max Voltage Rating (AC) 600V
Note Contacts Not Included
Row Spacing 0.165 (4.20mm)
Insulation Resistance 1GOhm
Operating Supply Voltage 600V
Contact Gender Female
Number of Contacts 20
Approval Agency CSA
Voltage - Rated AC 600V
Current Rating 9A
Depth 20mm
Orientation Straight
Pitch 0.165 4.20mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Latch Lock
Voltage - Rated 600V
Number of Rows 2
Color Natural
Min Operating Temperature -40°C
Max Operating Temperature 221°C
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series VAL-U-LOK
Published 2003
Packaging Bulk
Physical
Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 19 Weeks
