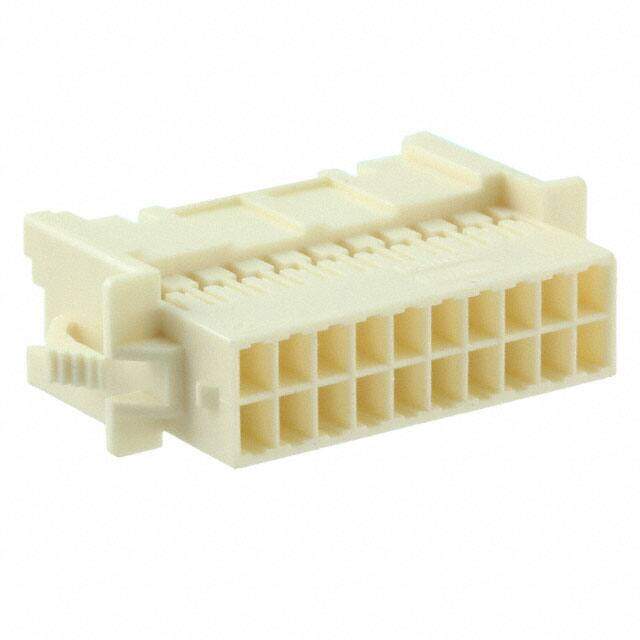

2-1969595-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
HSG RECPT DBL ROW FREE-HANG
PDF
/
Inventory: 2668
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 31 Weeks
Physical
Mounting Type Panel Mount, Snap-In
Housing Material Nylon
Technical
Packaging Bulk
Published 2015
Series Economy Power 2.5
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Receptacle
Number of Positions 20
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Natural
Number of Rows 2
Fastening Type Latch Holder
Contact Type Male Pin
Pitch 0.098 2.50mm
Housing Color Natural, White
Operating Supply Voltage 250V
Row Spacing 0.098 (2.50mm)
Note Contacts Not Included
ELV Compliant
Wire/Cable Gauge 22 AWG
Contact Current Rating 3A
Contact Termination Crimp
Insulation Diameter 1.7 mm
Dimensions
Height 19.97mm
Length 27.89mm
Width 10.3124mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
