2-1747050-3 image
Favorite
2-1747050-3 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings

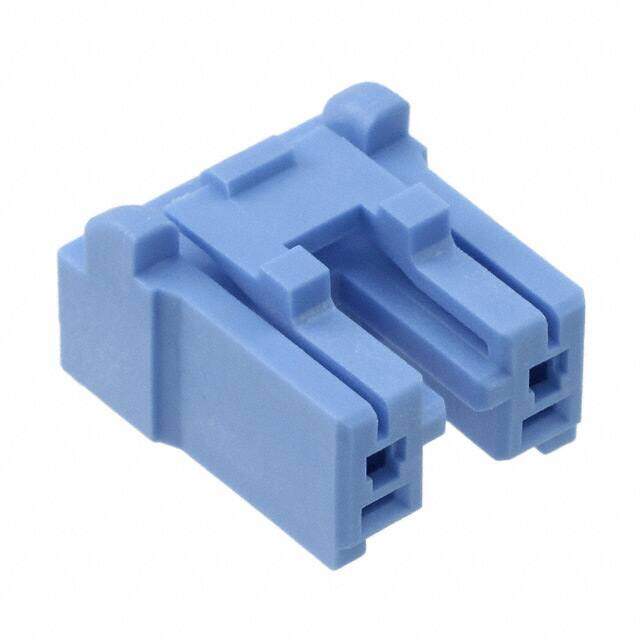

Description GIC 7.92MM PITCH CONNECTOR PLUG
PDF
/
Buying Options
Total Price: USD $0.34
Unit Price: USD $0.3432
≥1 USD $0.3432
≥10 USD $0.3124
≥100 USD $0.260304
≥500 USD $0.221302
≥1000 USD $0.193961
≥3000 USD $0.173131
Inventory: 2869
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Dimensions

Plating Thickness 800 nm
Length 13.495934mm
Height 9.5mm

Technical

Contact Retention With
Number of Power Positions 2
Contact Termination Crimp
Circuit Application Power
Contact Current Rating 10A
Sealable No
Note Contacts Not Included
Operating Supply Voltage 300V
Current Rating 10A
Pitch 0.307 7.80mm
Option GENERAL PURPOSE
Contact Type Tab
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Latch Lock
Number of Rows 1
Color Blue
Min Operating Temperature -22°C
Max Operating Temperature 221°C
Connector Type Plug
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Grace Inertia, GIC
Published 2007
Packaging Bulk

Physical

Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Contact Plating Tin

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 8 Weeks
