2-1586019-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

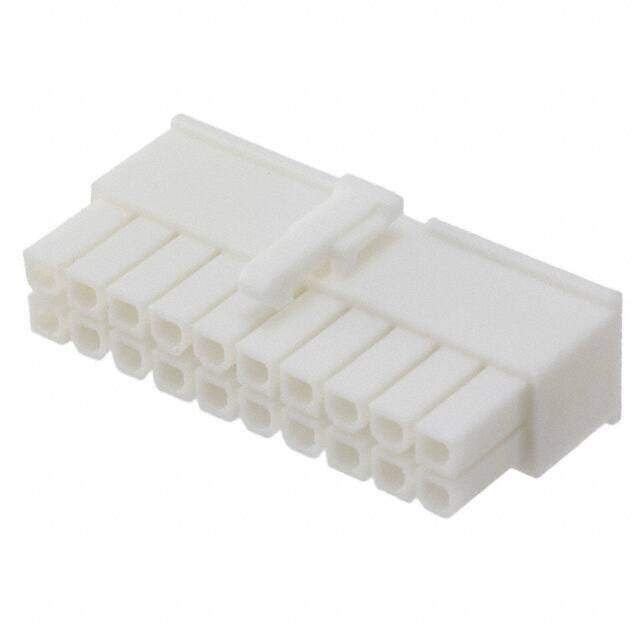

TE CONNECTIVITY 2-1586019-0 Connector Housing, VAL-U-LOK Series, Receptacle, 20 Ways, 4.2 mm
PDF
/
Buying Options
Total Price: USD $0.27
Unit Price: USD $0.2728
≥1 USD $0.2728
≥10 USD $0.24992
≥100 USD $0.248512
≥500 USD $0.243232
≥1000 USD $0.207944
≥3000 USD $0.187123
Inventory: 28536
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 20mm
Length 43.18mm
Height 11.7856mm
Technical
Contact Retention Without
Insulation Diameter 3.0988 mm
Contact Termination Crimp
Sealable No
Durability 50 Cycles
Wire/Cable Type Discrete
Dielectric Withstanding Voltage 1500VAC V
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 600V
ELV Compliant
Note Contacts Not Included
Row Spacing 0.165 (4.20mm)
Rated Current (Signal) 9A
Operating Supply Voltage 600V
Housing Color White, Natural
UL Flammability Code 94V-0
Contact Gender Female
Number of Contacts 20
Approval Agency CSA
Reliability COMMERCIAL
Voltage - Rated AC 600V
Current Rating 9A
Depth 20mm
Orientation Straight
Pitch 0.165 4.20mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Fastening Type Latch Lock
Number of Rows 2
Color Natural
Min Operating Temperature -40°C
Max Operating Temperature 221°C
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series VAL-U-LOK
Published 2005
Packaging Bulk
Physical
Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Panel
Contact Plating Gold
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 19 Weeks
