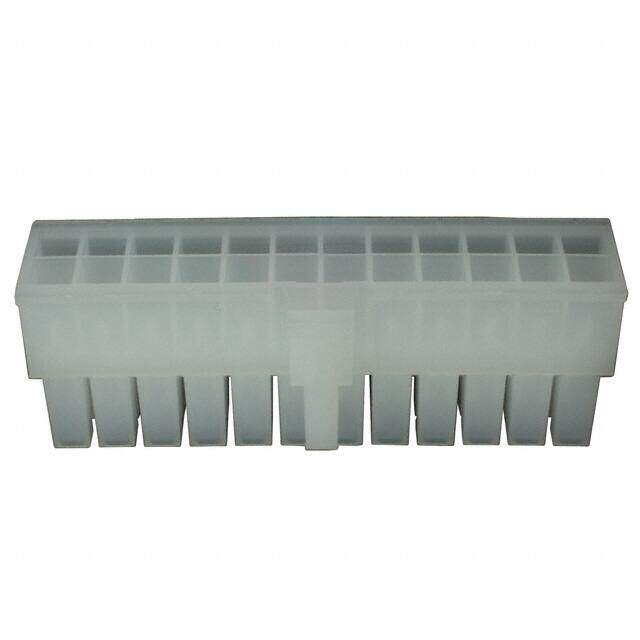

2-106527-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RECEPT 24POS W/POSTIVE LOCK
PDF
/
Buying Options
Total Price: USD $9.3
Unit Price: USD $9.30324
≥1 USD $9.30324
≥10 USD $8.776646
≥100 USD $8.279857
≥500 USD $7.811181
≥1000 USD $7.369044
Inventory: 6964
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Dimensions
Width 11.684mm
Length 51.816mm
Height 18.796mm
Technical
VDE Tested Yes
Contact Design PREASSEM CONN
Number of Signal Positions 24
Contact Termination Crimp
Withdrawl Force-Min .5004 N
Wire/Cable Gauge 26 AWG
Wire Gauge (Min) 18 AWG
Wire Gauge (Max) 26 AWG
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 600V
ELV Compliant
Note Contacts Not Included
Row Spacing 0.165 (4.20mm)
Insulation Resistance 1000000000Ohm
Contact Resistance 5mOhm
Rated Current (Signal) 9A
UL Flammability Code 94V-0
Body Breadth 0.461 inch
Approval Agency UL
Reliability COMMERCIAL
Reference Standard UL
Current Rating 9A
Depth 18.8mm
Orientation Straight
Total Number of Contacts 24
Pitch 0.165 4.20mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory Headers and Edge Type Connectors
Fastening Type Latch Lock
HTS Code 8536.69.40.40
Voltage - Rated 600V
Gender Female
Number of Rows 2
Color Natural
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series AMP-DUAC
Published 2004
Packaging Bulk
Physical
Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 12 Weeks
