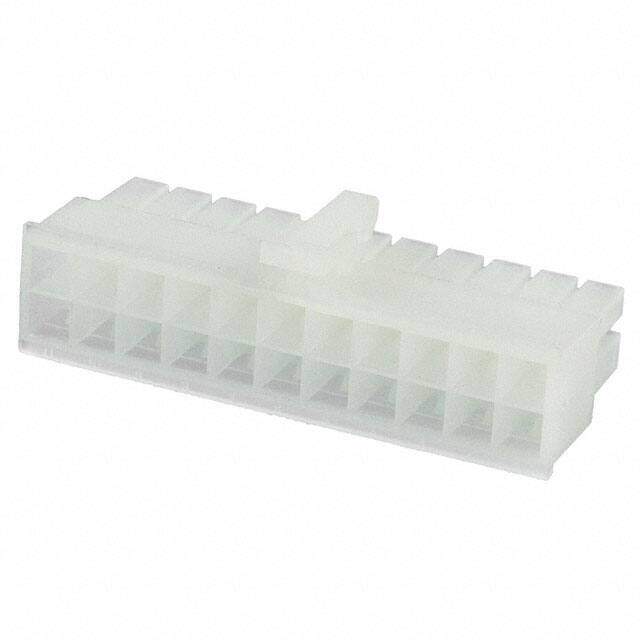

2-106527-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Pin & Socket Connectors 22P DUAC REC HSG
PDF
/
Buying Options
Total Price: USD $0.84
Unit Price: USD $0.844986
≥1 USD $0.844986
≥10 USD $0.797164
≥100 USD $0.752038
≥500 USD $0.709466
≥1000 USD $0.669316
Inventory: 9435
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 11.7mm
Length 47.498mm
Height 18.8mm
Technical
VDE Tested Yes
Contact Design PREASSEM CONN
Contact Termination Crimp
Withdrawl Force-Min .5004 N
Wire Gauge (Min) 18 AWG
Wire Gauge (Max) 26 AWG
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 600V
ELV Compliant
Note Contacts Not Included
Row Spacing 0.165 (4.20mm)
Insulation Resistance 1000000000Ohm
Contact Resistance 5mOhm
Rated Current (Signal) 9A
UL Flammability Code 94V-0
Body Breadth 0.461 inch
Approval Agency CSA
Reliability COMMERCIAL
Reference Standard UL
Current Rating 9A
Depth 18.8mm
Orientation Straight
Total Number of Contacts 22
Pitch 0.165 4.20mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Fastening Type Latch Lock
HTS Code 8536.69.40.40
Voltage - Rated 600V
Number of Rows 2
Color Natural
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 22
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series AMP-DUAC
Published 2004
Packaging Bulk
Physical
Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 11 Weeks
