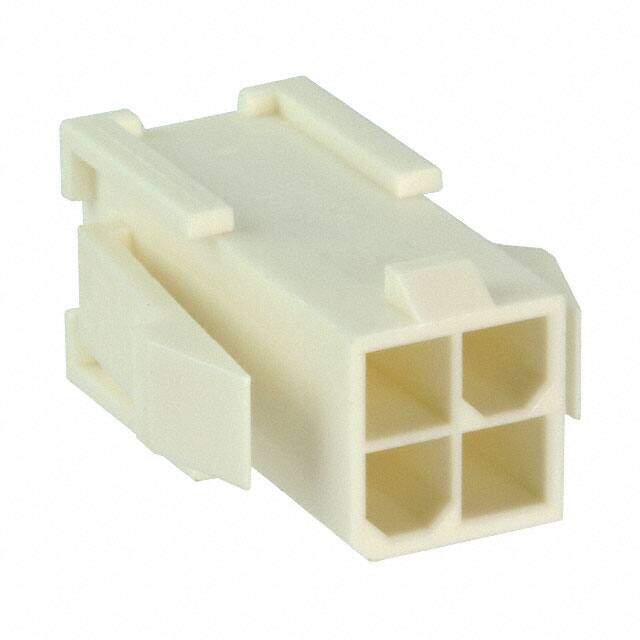

1969605-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Rectangular Connector Housing
PDF
/
Buying Options
Total Price: USD $0.27
Unit Price: USD $0.2728
≥1 USD $0.2728
≥10 USD $0.23672
≥100 USD $0.23584
≥500 USD $0.232848
≥1000 USD $0.215072
≥3000 USD $0.17681
Inventory: 7021
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Dimensions
Width 23.876mm
Length 9.6mm
Height 11.60018mm
Technical
Contact Retention Without
Contact Termination Crimp
Sealable No
ELV Compliant
Note Contacts Not Included
Row Spacing 0.165 (4.20mm)
Operating Supply Voltage 600V
Housing Color White
Number of Contacts 4
Approval Agency CSA
Orientation Straight
Pitch 0.165 4.20mm
Contact Type Male Pin
Fastening Type Locking Ramp
Gender Male
Number of Rows 2
Color Natural
Min Operating Temperature -40°C
Max Operating Temperature 221°C
Number of Positions 4
Connector Type Plug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VAL-U-LOK
Published 2014
Packaging Bulk
Physical
Housing Material Polyamide
Mounting Type Panel Mount, Snap-In
Mount Panel
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 16 Weeks
