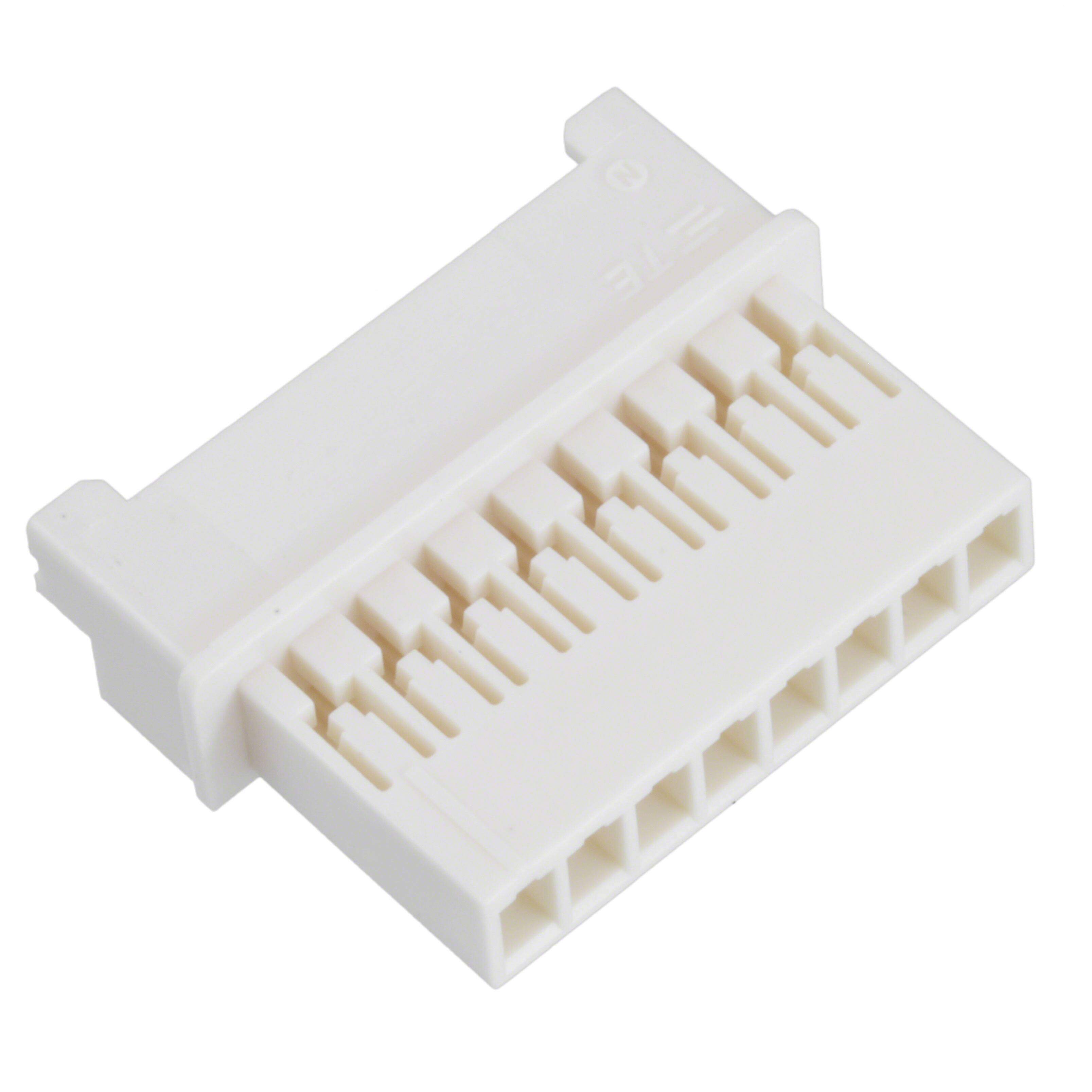

1969589-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Conn Housing RCP 8 POS 2.5mm ST Cable Mount Bag/Box
PDF
/
Inventory: 9587
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Mount Cable
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Technical
Packaging Bulk
Published 2015
Series Economy Power 2.5
Feature Glow Wire Compliant
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Receptacle
Number of Positions 8
Max Operating Temperature 105°C
Min Operating Temperature -25°C
Color Natural
Number of Rows 1
Gender Female
Fastening Type Latch Holder
Contact Type Male Pin
Pitch 0.098 2.50mm
Orientation Straight
Current Rating 7.5A
Number of Contacts 8
Housing Color Natural
Operating Supply Voltage 250V
Note Contacts Not Included
ELV Compliant
Wire/Cable Gauge 22 AWG
Sealable No
Contact Current Rating 7.5A
Contact Termination Crimp
Mating Retention With
Insulation Diameter 1.7 mm
Dimensions
Height 6.604mm
Length 22.49932mm
Width 18.17mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
