178964-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

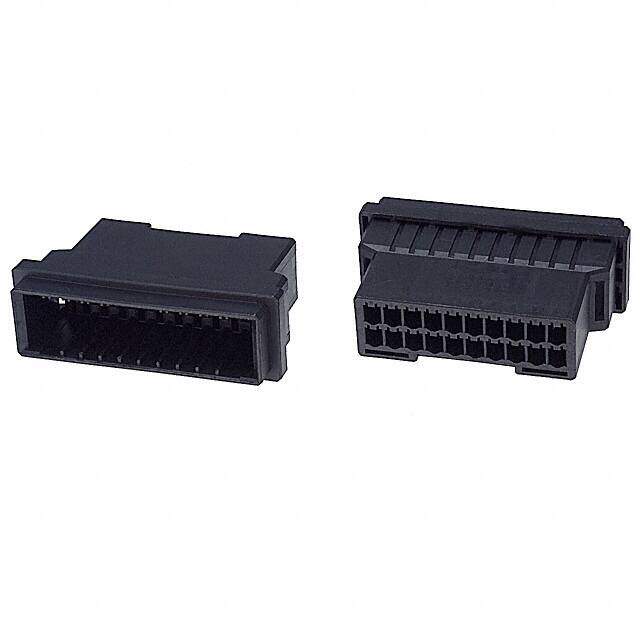

CONN HOUSING TAB 20POS DUAL FREE
PDF
/
Buying Options
Total Price: USD $2.28
Unit Price: USD $2.2792
≥1 USD $2.2792
≥10 USD $2.03192
≥100 USD $2.021888
≥500 USD $2.001296
≥1000 USD $1.82556
Inventory: 1074
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyester
Technical
Packaging Bulk
Published 2007
Series Dynamic D-3100
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug
Number of Positions 20
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 250V
Contact Type Tab
Pitch 0.150 3.81mm
Orientation Straight
Depth 33.6mm
Current Rating 3A
Approval Agency UL
Number of Contacts 20
Contact Gender Male
Housing Color Black
Operating Supply Voltage 250V
Row Spacing 0.200 (5.08mm)
Note Contacts Not Included
ELV Compliant
Max Voltage Rating (AC) 250V
Wire/Cable Gauge 16 AWG
Sealable No
Contact Termination Crimp
Halogen Free Halogen Free
Preloaded No
VDE Tested No
Dimensions
Height 33.6mm
Length 52.2224mm
Width 17.7546mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
