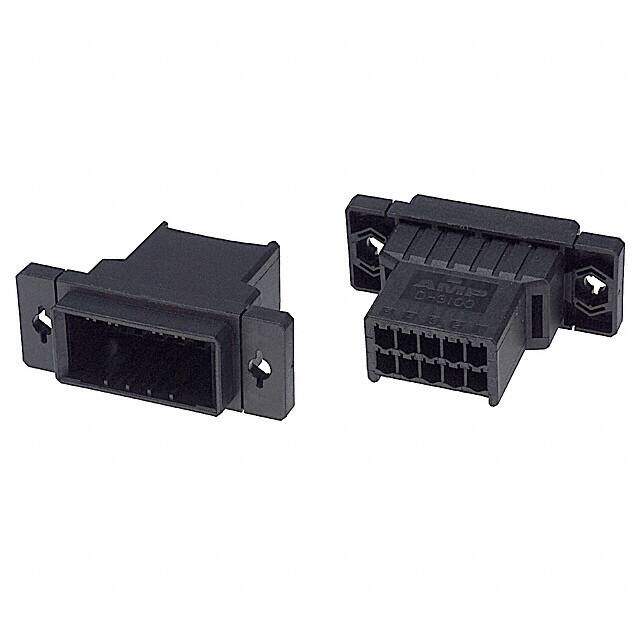

178803-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN HOUSING TAB 10POS DUAL PANL
PDF
/
Buying Options
Total Price: USD $2.2
Unit Price: USD $2.2
≥1 USD $2.2
≥10 USD $1.95712
≥100 USD $1.768404
≥500 USD $1.430625
≥1000 USD $1.261735
Inventory: 502
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 17.7546mm
Length 46.99mm
Height 33.6mm
Technical
VDE Tested No
Preloaded No
Halogen Free Halogen Free
Contact Termination Crimp
Sealable No
Wire/Cable Gauge 16 AWG
Max Voltage Rating (AC) 250V
ELV Compliant
Note Contacts Not Included
Row Spacing 0.200 (5.08mm)
Operating Supply Voltage 250V
Housing Color Black
Contact Gender Male
Number of Contacts 10
Approval Agency UL
Depth 33.6mm
Orientation Straight
Pitch 0.150 3.81mm
Contact Type Tab
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Color Black
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 10
Connector Type Plug
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mounting Flange
Series Dynamic D-3100
Published 2003
Packaging Bulk
Physical
Body Material Glass, PET, Polyester
Housing Material Polyester
Mounting Type Panel Mount
Mount Cable, Panel
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 months ago)
Factory Lead Time 22 Weeks
