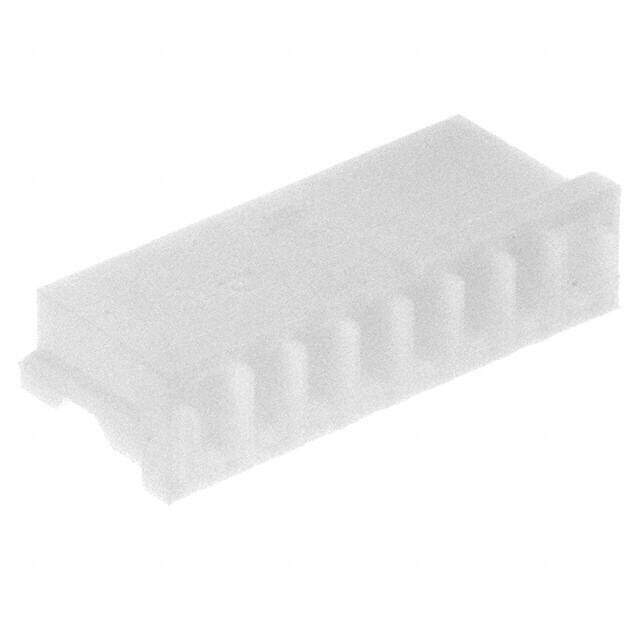

1775441-8
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN RCPT HOUSING 8POS 1.5MM
PDF
/
Buying Options
Total Price: USD $0.2
Unit Price: USD $0.2024
≥1 USD $0.2024
≥10 USD $0.17864
≥100 USD $0.162272
≥500 USD $0.117093
≥1000 USD $0.103752
≥3000 USD $0.091898
Inventory: 648
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Width 6.14934mm
Length 13.1064mm
Height 2.70002mm
Technical
Wire Size (Min) 30 AWG
Mating Retention With
Contact Termination Crimp
Contact Current Rating 3A
Sealable No
Wire/Cable Gauge 24 AWG
Dielectric Withstanding Voltage 500VAC V
Polarization Key POLARIZED HOUSING
ELV Compliant
Note Contacts Not Included
Insulation Resistance 500000000Ohm
Contact Resistance 40mOhm
Rated Current (Signal) 3A
Operating Supply Voltage 250V
Body Depth 0.242 inch
UL Flammability Code 94V-0
Contact Gender Female
Reliability COMMERCIAL
Reference Standard UL
Current Rating 3A
Orientation Straight
Total Number of Contacts 8
Pitch 0.059 1.50mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
Number of Rows 1
Color Natural
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 8
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series HPI
Published 2011
Packaging Bulk
Physical
Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 13 Weeks
