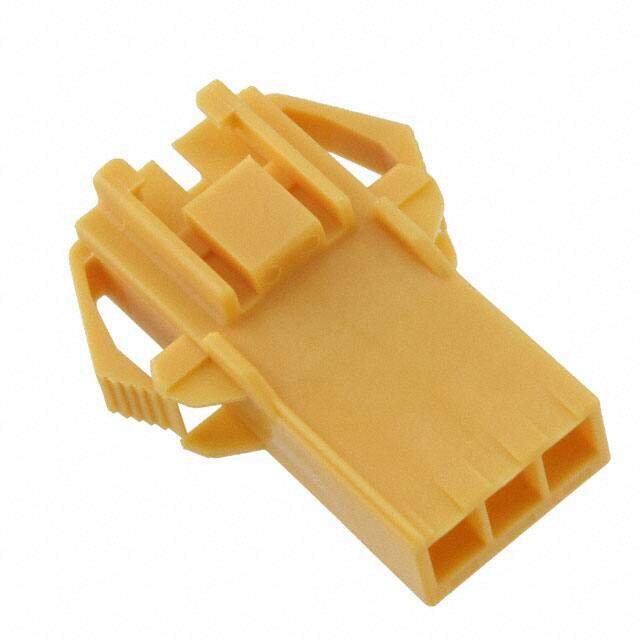

176293-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
UNIV POWER CAP HSG 3P P/MOUNT
PDF
/
Inventory: 2443
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Mount Panel
Mounting Type Panel Mount, Snap-In
Shell Material POLYAMIDE66
Housing Material Nylon
Technical
Packaging Bulk
Published 1997
Series Universal Power
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 3
Max Operating Temperature 221°C
Min Operating Temperature -22°C
Color Yellow
Number of Rows 1
Gender Female
Fastening Type Latch Lock
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Tab
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.156 3.96mm
Total Number of Contacts 3
Current Rating 7A
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Operating Supply Voltage 300V
Insulation Resistance 1GOhm
Note Contacts Not Included
ELV Compliant
Dielectric Withstanding Voltage 2200VAC V
Durability 25 Cycles
Insertion Force-Max 6.672 N
Sealable No
Contact Current Rating 7A
Contact Termination Crimp
Contact Retention Without
Dimensions
Height 8.9mm
Length 28.956mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Not Applicable
