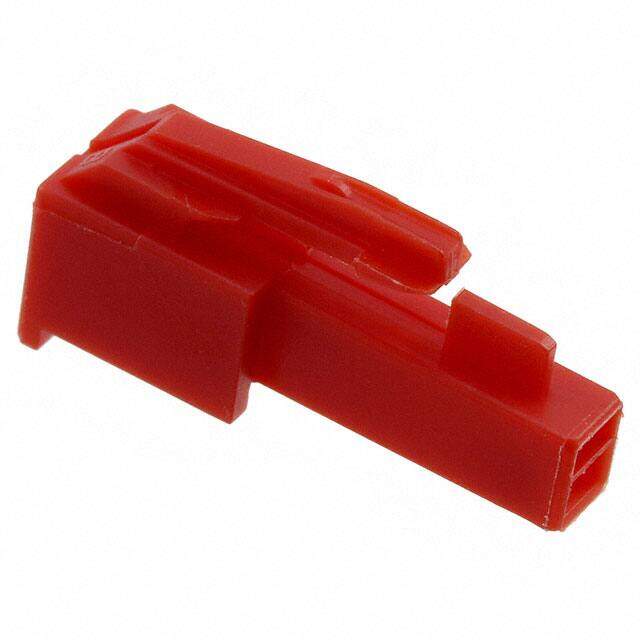

176270-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN PLUG HSG 1POS UNIV PWR
PDF
/
Buying Options
Total Price: USD $0.18
Unit Price: USD $0.1848
≥1 USD $0.1848
≥10 USD $0.15928
≥100 USD $0.14784
≥500 USD $0.140272
≥1000 USD $0.132616
≥3000 USD $0.123482
Inventory: 20183
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Length 5.5mm
Height 10.05mm
Technical
Contact Retention Without
Contact Termination Crimp
Sealable No
ELV Compliant
Note Contacts Not Included
Operating Supply Voltage 300V
Empty Shell YES
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Total Number of Contacts 1
Pitch 3.9624mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Latch Lock
Gender Male
Color Red
Min Operating Temperature -22°C
Max Operating Temperature 221°C
Number of Positions 1
Connector Type Plug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Universal Power
Published 1997
Packaging Bulk
Physical
Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 15 Weeks
