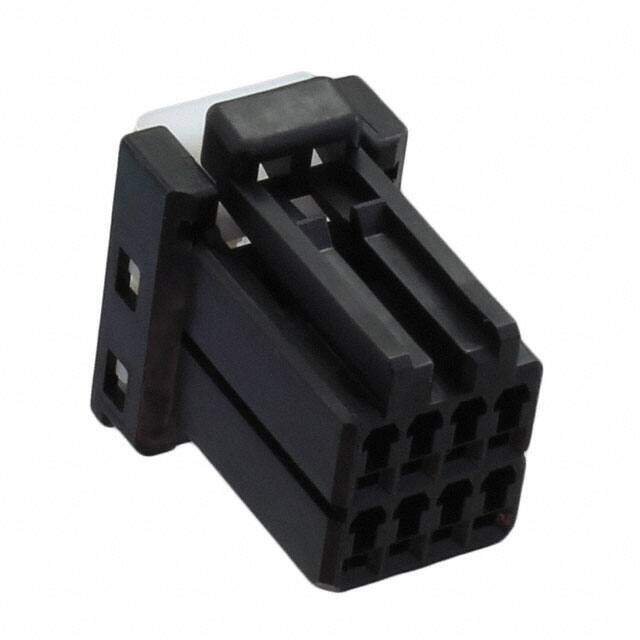

175964-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Conn Housing PL 8 POS 2.5mm Crimp ST
PDF
/
Buying Options
Total Price: USD $0.91
Unit Price: USD $0.9064
≥1 USD $0.9064
≥10 USD $0.84392
≥100 USD $0.812416
≥500 USD $0.804672
≥1000 USD $0.726264
≥3000 USD $0.70268
Inventory: 3531
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene
Body Material PBT
Technical
Packaging Bulk
Published 2001
Series Multi-Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Number of Positions 8
Max Operating Temperature 221°C
Min Operating Temperature -22°C
Color Black
Number of Rows 2
Gender Female
Fastening Type Latch Lock
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Pitch 0.098 2.50mm
Total Number of Contacts 8
Orientation Straight
Depth 23mm
Mating Information 175973
Empty Shell YES
Row Spacing 0.205 (5.20mm)
Note Contacts Not Included
ELV Compliant
Circuit Application Signal
Contact Termination Crimp
Mating Tab Width 1mm
Hybrid Connector No
Polarized Yes
Dimensions
Height 18mm
Length 23mm
Width 14.1mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 HB
