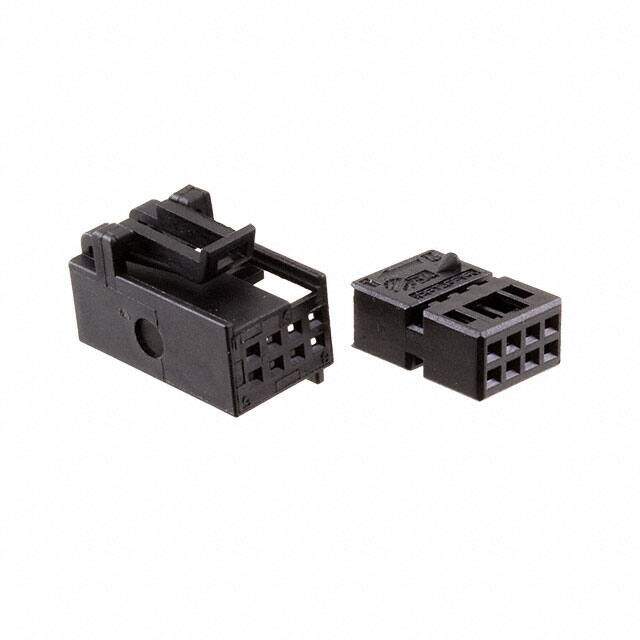

1745000-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Automotive Connectors SOCKET CONN 8 POS KIT X MQS CONTACTS
PDF
/
Buying Options
Total Price: USD $1.3
Unit Price: USD $1.3024
≥1 USD $1.3024
≥10 USD $1.15896
≥100 USD $1.1528
≥500 USD $1.141184
≥1000 USD $1.047112
≥3000 USD $1.041216
Inventory: 1114
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 11.3mm
Length 11.303mm
Height 16.6116mm
Technical
Polarized Yes
Hybrid Connector No
Mating Tab Width 635μm
Contact Termination Crimp
Circuit Application Signal
Wire/Cable Gauge 24 AWG
Wire Gauge (Min) 18 AWG
Wire Gauge (Max) 24 AWG
ELV Compliant
Note Contacts Not Included
Row Spacing 0.100 (2.54mm)
Depth 23mm
Orientation Straight
Pitch 0.100 2.54mm
Contact Type Female Socket
Fastening Type Latch Lock
Number of Rows 2
Color Black
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Number of Positions 8
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Micro Quadlok
Published 2005
Packaging Bulk
Physical
Housing Material Polybutylene
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 16 Weeks
