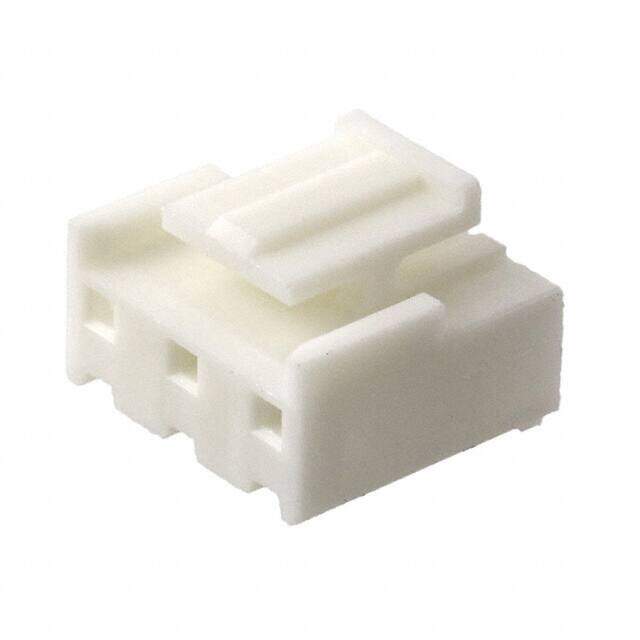

1744036-3 image
Favorite
1744036-3 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description Conn Housing RCP 3 POS 5.08mm Crimp ST Cable Mount Natural Bag
PDF
/
Buying Options
Total Price: USD $0.22
Unit Price: USD $0.22
≥1 USD $0.22
≥10 USD $0.18744
≥100 USD $0.18656
≥500 USD $0.184448
≥1000 USD $0.170368
≥3000 USD $0.140026
Inventory: 7583
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Dimensions

Width 13.3096mm
Length 14.0589mm
Height 10.4902mm

Technical

Contact Retention Without
Insulation Diameter 2.9972 mm
Contact Termination Crimp
Contact Current Rating 7.5A
Sealable No
Wire Gauge (Min) 22 AWG
Wire Gauge (Max) 18 AWG
Max Voltage Rating (AC) 250V
ELV Compliant
Note Contacts Not Included
Operating Supply Voltage 250V
Housing Color Natural
Contact Gender Female
Number of Contacts 3
Current Rating 7.5A
Depth 13.3mm
Orientation Straight
Pitch 0.200 5.08mm
Contact Type Female Socket
Fastening Type Latch Lock
Voltage - Rated 250V
Number of Rows 1
Color Natural
Min Operating Temperature -25°C
Max Operating Temperature 105°C
Number of Positions 3
Connector Type Receptacle
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Economy Power
Published 2011
Packaging Bulk

Physical

Housing Material Nylon
Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 16 Weeks
