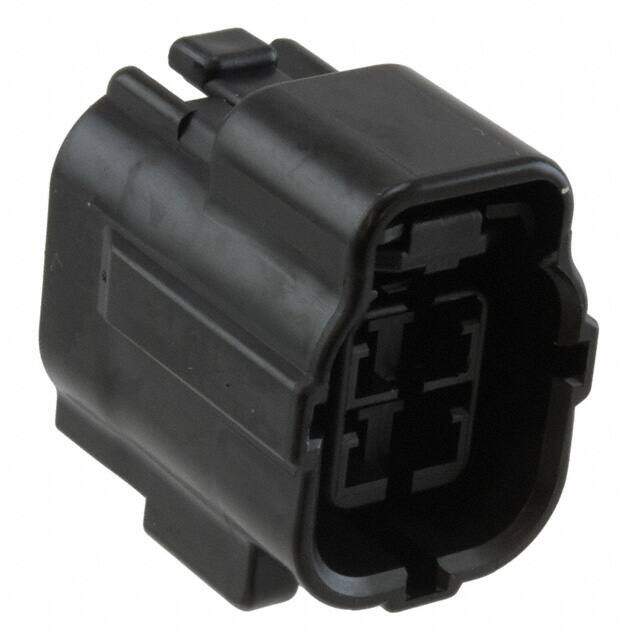

174257-2 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description Conn Housing PL 4 POS 5.6mm Crimp ST
PDF
/
Buying Options
Total Price: USD $1.26
Unit Price: USD $1.2584
≥1 USD $1.2584
≥10 USD $1.15368
≥100 USD $1.11936
≥500 USD $1.10792
≥1000 USD $1.028368
≥3000 USD $1.011358
Inventory: 2958
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
REACH SVHC No SVHC

Dimensions

Width 20.5994mm
Length 27.6098mm
Height 29.3116mm

Technical

Polarized Yes
Hybrid Connector No
Mating Tab Width 1.8mm
Contact Termination Crimp
Circuit Application Signal
Wire/Cable Gauge 24 AWG
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 24 AWG
ELV Compliant
Note Contacts Not Included
Row Spacing 0.220 (5.60mm)
Empty Shell YES
Mating Information MULTIPLE MATING PARTS AVAILABLE
Depth 27.6mm
Orientation Straight
Total Number of Contacts 4
Pitch 0.189 4.80mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated DC 12V
Fastening Type Latch Holder
Gender Receptacle
Number of Rows 2
Color Black
Min Operating Temperature -22°C
Max Operating Temperature 221°C
Number of Positions 4
Connector Type Plug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Sealed
Series EconoSeal J Mark II
Published 1999
Packaging Bulk

Physical

Body Material PBT
Housing Material Polybutylene
Insulation Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Free Hanging

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 24 Weeks
