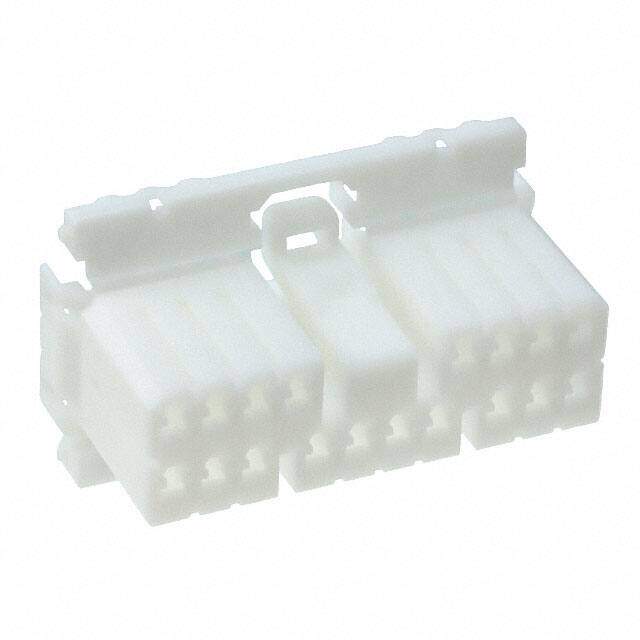

173853-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Automotive Connectors 070 MULTILK PLUG 18P
PDF
/
Buying Options
Total Price: USD $0.82
Unit Price: USD $0.8184
≥1 USD $0.8184
≥10 USD $0.77704
≥100 USD $0.74272
≥500 USD $0.732336
≥1000 USD $0.639936
≥3000 USD $0.616035
Inventory: 610
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 HB
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Width 42.3mm
Length 21.6mm
Height 26.0604mm
Technical
Polarized Yes
Hybrid Connector No
Mating Tab Width 1.8mm
Contact Termination Crimp
Circuit Application Signal
ELV Compliant
Note Contacts Not Included
Row Spacing 0.232 (5.90mm)
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Depth 21.6mm
Orientation Straight
Total Number of Contacts 18
Pitch 5.8928mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Fastening Type Latch Lock
Additional Feature COMPACTABLE CONTACTS :173630; 173631
Gender Male
Number of Rows 2
Color White
Min Operating Temperature -22°C
Max Operating Temperature 221°C
Number of Positions 18
Connector Type Plug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Multi-Lock
Published 1997
Packaging Bulk
Physical
Body Material PBT
Housing Material Polybutylene
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 15 Weeks
