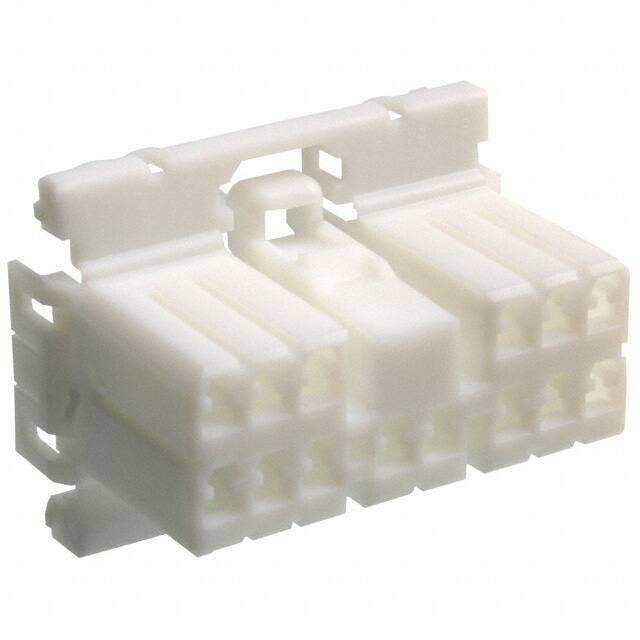

173852-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Automotive Connectors MULTILOCK PLUG 14P 070
PDF
/
Buying Options
Total Price: USD $1.24
Unit Price: USD $1.2408
≥1 USD $1.2408
≥10 USD $1.15984
≥100 USD $1.116544
≥500 USD $0.99792
≥1000 USD $0.965536
≥3000 USD $0.879226
Inventory: 470
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 HB
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 35.306mm
Length 21.6mm
Height 26.0604mm
Technical
Polarized Yes
Hybrid Connector No
Mating Tab Width 1.8mm
Contact Design PREASSEM CONN
Contact Termination Crimp
Circuit Application Signal
Insertion Force-Max 7.1168 N
Durability 30 Cycles
Dielectric Withstanding Voltage 1800VAC V
Polarization Key POLARIZED HOUSING
ELV Compliant
Note Contacts Not Included
Row Spacing 0.232 (5.90mm)
Insulation Resistance 100000000Ohm
Contact Resistance 10mOhm
Empty Shell YES
Mating Information MULTIPLE MATING PARTS AVAILABLE
Lead Pitch 2.5mm
Reliability COMMERCIAL
Reference Standard UL
Current Rating 8A
Depth 21.6mm
Orientation Straight
Total Number of Contacts 14
Pitch 3.5mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Fastening Type Latch Lock
HTS Code 8536.69.40.30
Gender Male
Number of Rows 2
Color White
Min Operating Temperature -22°C
Max Operating Temperature 221°C
Number of Positions 14
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Multi-Lock
Published 1997
Packaging Bulk
Physical
Body Material PBT
Housing Material Polybutylene
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 15 Weeks
