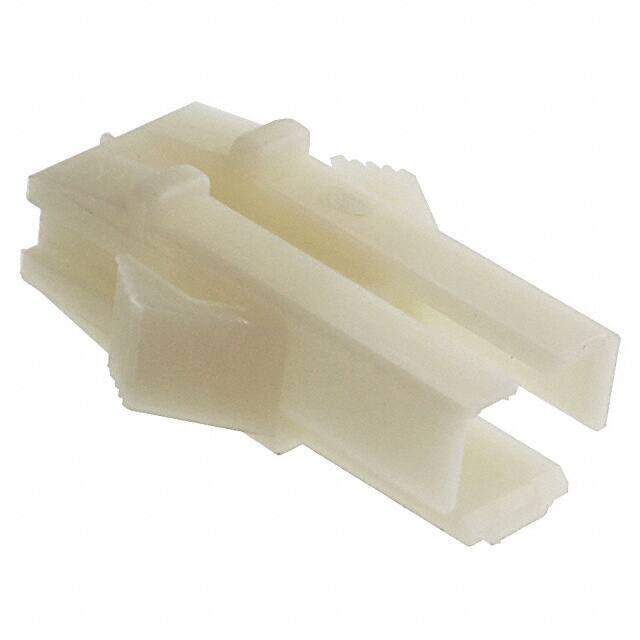

172213-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN PLUG HOUSING 2POS PNL MNT
PDF
/
Buying Options
Total Price: USD $0.18
Unit Price: USD $0.176
≥1 USD $0.176
≥10 USD $0.154
≥100 USD $0.153472
≥500 USD $0.151536
≥1000 USD $0.140096
≥3000 USD $0.115139
Inventory: 11400
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Mount Panel
Mounting Type Panel Mount, Snap-In
Housing Material Nylon
Technical
Packaging Bulk
Published 2008
Series EI
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Number of Positions 2
Color Natural
Number of Rows 1
Gender Female
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.098 2.50mm
Total Number of Contacts 2
Orientation Straight
Depth 20.2mm
Current Rating 2A
Reference Standard UL
Reliability COMMERCIAL
Approval Agency UL
Operating Temperature (Max) 95°C
UL Flammability Code 94V-0
Operating Supply Voltage 250V
Rated Current (Signal) 2A
Insulation Resistance 500000000Ohm
Note Contacts Not Included
ELV Compliant
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 750VAC V
Sealable No
Contact Current Rating 2A
Contact Termination Crimp
Mating Retention With
Contact Design PREASSEM CONN
Wire Size (Min) 30 AWG
Dimensions
Height 8mm
Length 13.5mm
Width 8mm
Panel Thickness 1.6002mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Not Applicable
