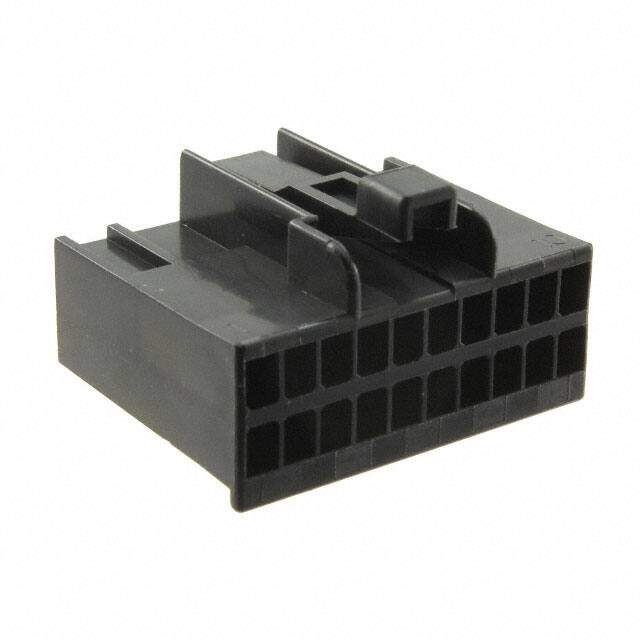

172047-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Automotive Connectors DLI HSG 20 POS MOD IV TYPE
PDF
/
Buying Options
Total Price: USD $2.02
Unit Price: USD $2.024
≥1 USD $2.024
≥10 USD $1.80136
≥100 USD $1.627736
≥500 USD $1.316832
≥1000 USD $1.161371
Inventory: 1134
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Technical
Packaging Bulk
Published 1997
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Number of Positions 20
Max Operating Temperature 221°C
Min Operating Temperature -22°C
Color Black
Number of Rows 2
Gender Male
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.118 3.00mm
Total Number of Contacts 20
Orientation Straight
Depth 24mm
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Row Spacing 0.181 (4.60mm)
Note Contacts Not Included
ELV Compliant
Circuit Application Signal
Contact Termination Crimp
Mating Tab Width 1.4986mm
Hybrid Connector No
Polarized Yes
Dimensions
Height 19.7mm
Length 30.8mm
Width 32mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 HB
Lead Free Not Applicable
