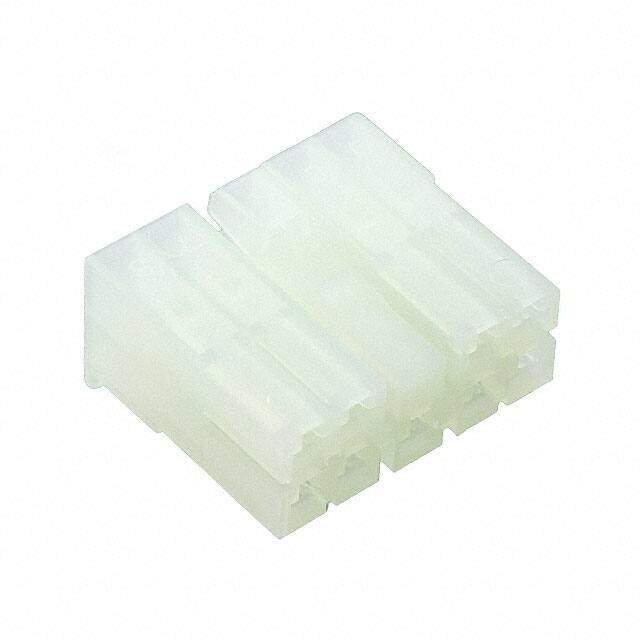

171892-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Headers & Wire Housings 9CIR MIC PLUG HSG
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.7656
≥1 USD $0.7656
≥10 USD $0.73392
≥100 USD $0.604824
≥500 USD $0.475473
≥1000 USD $0.407546
≥3000 USD $0.400312
Inventory: 858
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material NOT SPECIFIED
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material POLYAMIDE66
Housing Material Nylon
Technical
Packaging Bulk
Published 2005
Series MIC (Multi-Interlock)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Number of Positions 9
Max Operating Temperature 105°C
Min Operating Temperature -30°C
Color Natural
Number of Rows 2
Gender Male
Fastening Type Latch Lock
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 9
Orientation Straight
Depth 26.5mm
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Row Spacing 0.236 (6.00mm)
Note Contacts Not Included
ELV Compliant
Contact Termination Crimp
Dimensions
Length 30.1mm
Width 15mm
Compliance
RoHS Status RoHS Compliant
Lead Free Not Applicable
