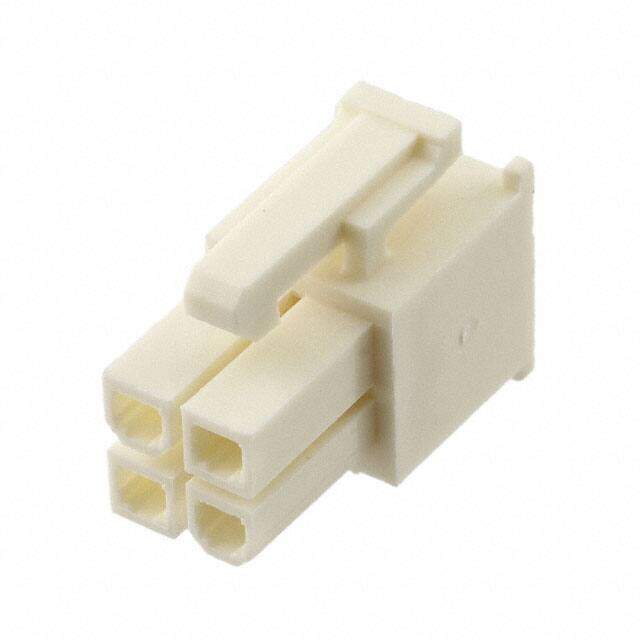

1586765-4 image
Favorite
1586765-4 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description Pin & Socket Connectors 4P RCPT DUAL F/H GLOW WIRE
PDF
/
Buying Options
Total Price: USD $0.21
Unit Price: USD $0.2112
≥1 USD $0.2112
≥10 USD $0.18392
≥100 USD $0.129888
≥500 USD $0.12071
≥1000 USD $0.106964
≥3000 USD $0.094741
Inventory: 2767
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 20mm
Length 9.6mm
Height 11.7856mm

Technical

Contact Retention Without
Insulation Diameter 3.0988 mm
Contact Termination Crimp
Sealable No
Wire/Cable Type Discrete
Max Voltage Rating (AC) 600V
Note Contacts Not Included
Row Spacing 0.165 (4.20mm)
Operating Supply Voltage 600V
Housing Color White
Number of Contacts 4
Approval Agency CSA
Current Rating 9A
Depth 20mm
Orientation Straight
Pitch 0.165 4.20mm
Contact Type Female Socket
Fastening Type Latch Lock
Voltage - Rated 600V
Gender Receptacle
Number of Rows 2
Color White
Min Operating Temperature -40°C
Max Operating Temperature 221°C
Number of Positions 4
Connector Type Receptacle
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series VAL-U-LOK
Published 2008
Packaging Bulk

Physical

Housing Material Polyamide
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Bronze

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 16 Weeks
