1445048-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

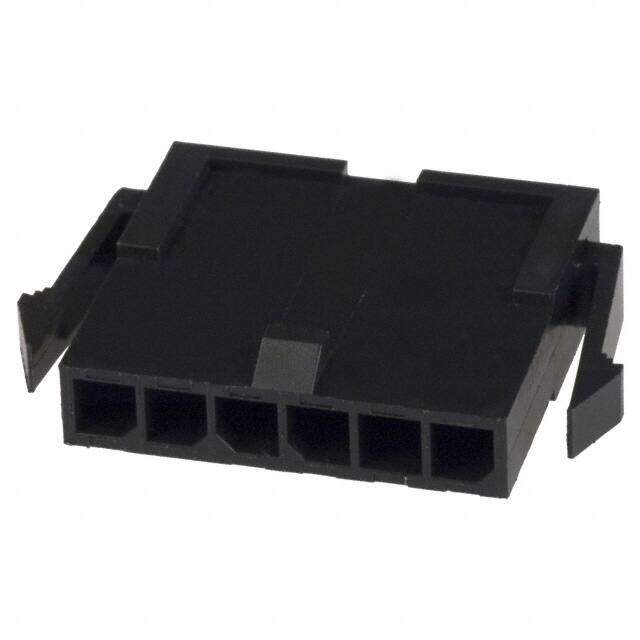

CONN PLUG 3MM 6POS MATE-N-LOK
PDF
/
Buying Options
Total Price: USD $0.43
Unit Price: USD $0.4312
≥1 USD $0.4312
≥10 USD $0.40128
≥100 USD $0.399872
≥500 USD $0.389664
≥1000 USD $0.334312
≥3000 USD $0.302368
Inventory: 20842
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Panel Thickness 2.3114mm
Width 3.86mm
Length 18.85mm
Height 16.89mm
Technical
VDE Tested Yes
Contact Retention Without
Contact Termination Crimp
Sealable No
Max Voltage Rating (AC) 250V
Note Contacts Not Included
Operating Supply Voltage 250V
Housing Color Black
Contact Gender Male
Number of Contacts 6
Approval Agency CSA
Current Rating 5A
Depth 16.89mm
Orientation Straight
Pitch 0.118 3.00mm
Contact Type Male Pin
Fastening Type Locking Ramp
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 221°C
Number of Positions 6
Connector Type Plug
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Micro MATE-N-LOK
Published 2002
Packaging Bulk
Physical
Housing Material Nylon
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 16 Weeks
