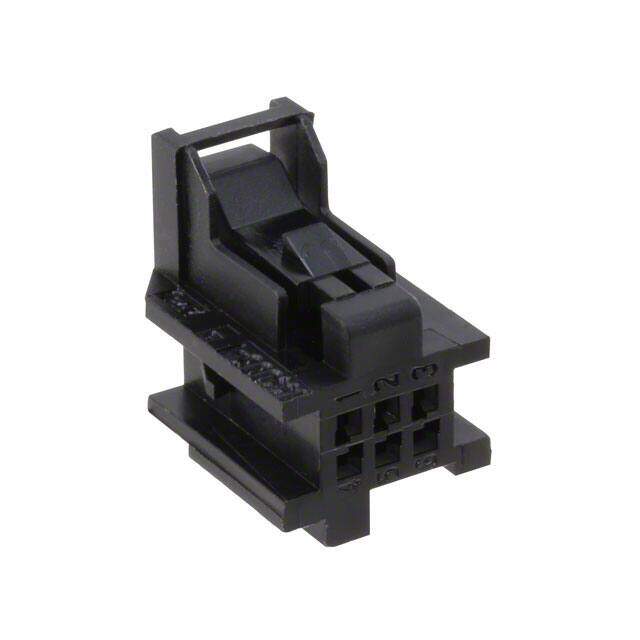

144095-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount
PDF
/
Buying Options
Total Price: USD $0.65
Unit Price: USD $0.6512
≥1 USD $0.6512
≥10 USD $0.60456
≥100 USD $0.58256
≥500 USD $0.576752
≥1000 USD $0.52052
≥3000 USD $0.503642
Inventory: 858
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Mount Cable
Mounting Type Panel Mount
Number of Pins 6
Housing Material Polyamide
Technical
Packaging Bulk
Published 2008
Series AMPMODU Mod IV
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Receptacle
Number of Positions 6
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Color Black
Number of Rows 2
Fastening Type Locking Ramp
Contact Type Female Socket
Pitch 0.100 2.54mm
Orientation Straight
Number of Contacts 6
Housing Color Black
Operating Supply Voltage 250V
Insulation Resistance 5GOhm
Row Spacing 2.54 mm
Note Contacts Not Included
ELV Compliant
Contact Termination Crimp
Mating Retention With
Dimensions
Height 18mm
Length 13.9mm
Compliance
RoHS Status RoHS Compliant
