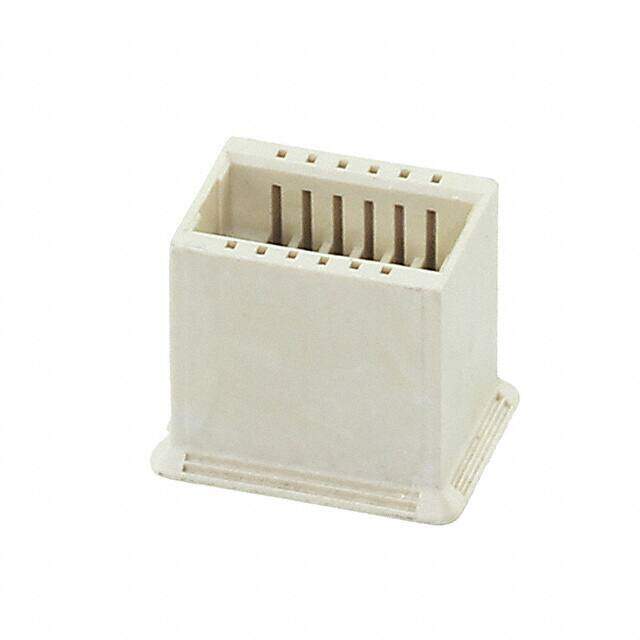

1375875-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Headers & Wire Housings PLUG HSG,12POS,0.8MM MICRO INT
PDF
/
Inventory: 3925
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Length 8.15mm
Height 6.731mm
Technical
Mating Retention With
Contact Termination Crimp
Contact Current Rating 1A
Wire/Cable Gauge 28 AWG
ELV Compliant
Note Contacts Not Included
Row Spacing 0.130 (3.30mm)
Insulation Resistance 500MOhm
Operating Supply Voltage 30V
Contact Gender Male
Approval Agency UL
Current Rating 1A
Depth 6.74mm
Orientation Straight
Pitch 0.031 0.80mm
Contact Type Outer Shroud Contact
Contact Finish - Mating NOT SPECIFIED
Number of Rows 2
Color Natural
Min Operating Temperature -55°C
Max Operating Temperature 85°C
Number of Positions 12
Connector Type Plug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series AMPMODU Micro
Published 2009
Packaging Bulk
Physical
Housing Material Polymer
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material NOT SPECIFIED
