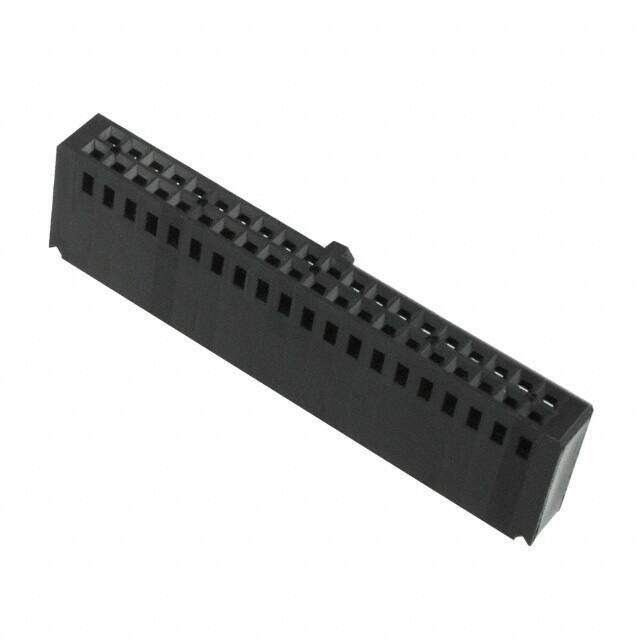

102387-9
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN HOUSING 40POS .100 POL DUAL
PDF
/
Buying Options
Total Price: USD $5.62
Unit Price: USD $5.618
≥1 USD $5.618
≥10 USD $5.3
≥100 USD $5
Inventory: 1000
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 7.23mm
Length 53.34mm
Height 7.23mm
Technical
Contact Termination Crimp
Contact Current Rating 3A
Wire/Cable Gauge 30 AWG
Wire Gauge (Min) 22 AWG
Wire Gauge (Max) 30 AWG
Polarization Key CENTER
Max Voltage Rating (AC) 250V
ELV Compliant
Body/Shell Style PLUG
Note Contacts Not Included
Row Spacing 0.100 (2.54mm)
Insulation Resistance 5GOhm
Rated Current (Signal) 3A
Operating Supply Voltage 250V
Contact Gender Female
Mating Information MULTIPLE MATING PARTS AVAILABLE
Approval Agency CSA
Reliability COMMERCIAL
Voltage - Rated AC 250V
Current Rating 3A
Depth 15.24mm
Orientation Straight
Total Number of Contacts 40
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Additional Feature POLARIZED, SHROUDED
Number of Rows 2
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 40
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Polarizing Key
Series AMPMODU Mod IV
Published 2008
Packaging Bulk
Physical
Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 7 Weeks
