1-926476-7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

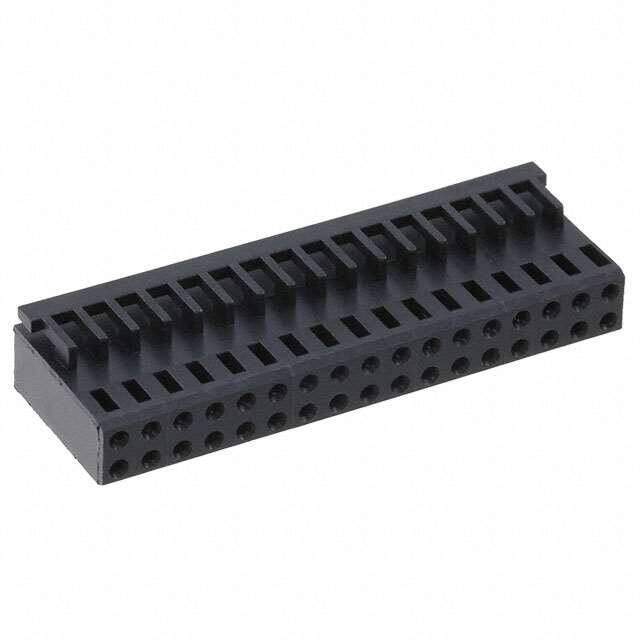

Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount
PDF
/
Buying Options
Total Price: USD $5.38
Unit Price: USD $5.379156
≥1 USD $5.379156
≥10 USD $5.074672
≥100 USD $4.78743
≥500 USD $4.516443
≥1000 USD $4.260799
Inventory: 7396
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Length 42.926mm
Technical
Mating Retention Without
Contact Termination Crimp
ELV Compliant
Note Contacts Not Included
Row Spacing 0.100 (2.54mm)
Operating Supply Voltage 250V
UL Flammability Code 94V-0
Orientation Straight
Total Number of Contacts 34
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Female
Number of Rows 2
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 34
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series AMPMODU Mod IV
Published 2001
Packaging Bulk
Physical
Housing Material Polyester
Mounting Type Free Hanging (In-Line)
Mount Cable
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 22 Weeks
