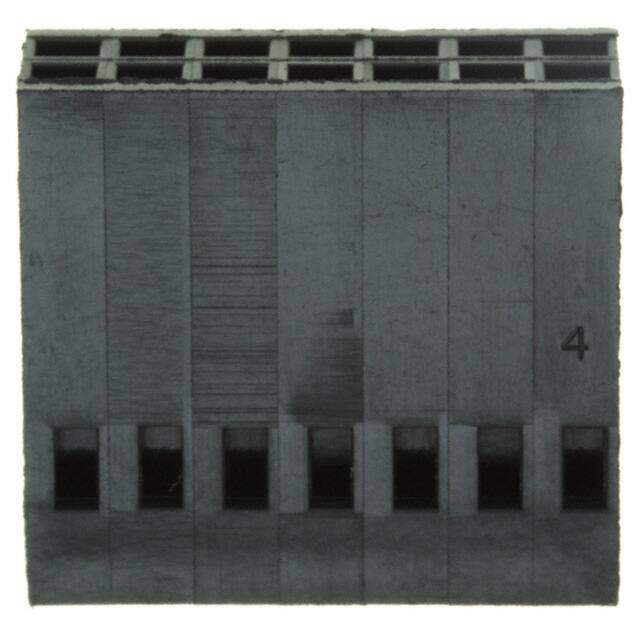

1-86177-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN HOUSING 14POS .100 DUAL ROW
PDF
/
Buying Options
Total Price: USD $22.9
Unit Price: USD $22.898289
≥1 USD $22.898289
≥200 USD $9.136471
≥500 USD $8.831878
≥1000 USD $8.680895
Inventory: 992
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Contact Material Bronze
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Technical
Packaging Bulk
Published 2008
Series AMPMODU Mod IV
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 14
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Color Black
Number of Rows 2
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 14
Orientation Straight
Current Rating 3A
Voltage - Rated AC 250V
Reliability COMMERCIAL
Approval Agency CSA
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Female
Body Depth 0.645 inch
Operating Supply Voltage 250V
Rated Current (Signal) 3A
Insulation Resistance 5GOhm
Row Spacing 0.100 (2.54mm)
Note Contacts Not Included
ELV Compliant
Max Voltage Rating (AC) 250V
Dielectric Withstanding Voltage 1000VAC V
Insertion Force-Max 4.448 N
Withdrawl Force-Min .556 N
Contact Current Rating 3A
Contact Termination Crimp
Dimensions
Height 6.1mm
Length 17.77mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Not Applicable
