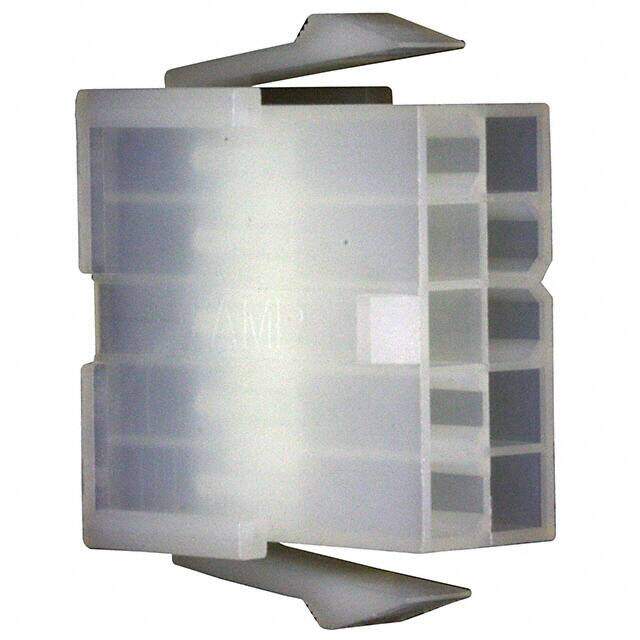

1-794953-0 image
Favorite
1-794953-0 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description CONN PLUG 10POS PANEL MOUNT
PDF
/
Buying Options
Total Price: USD $0.24
Unit Price: USD $0.2376
≥1 USD $0.2376
≥10 USD $0.20768
≥100 USD $0.146221
≥500 USD $0.135898
≥1000 USD $0.12041
≥3000 USD $0.106656
Inventory: 400
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)

Physical

Contact Plating Tin
Mount Panel
Mounting Type Panel Mount, Snap-In
Housing Material Nylon

Technical

Packaging Bulk
Published 2008
Series VAL-U-LOK
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Max Operating Temperature 221°C
Min Operating Temperature -40°C
Color Natural
Number of Rows 2
Voltage - Rated 600V
Fastening Type Locking Ramp
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Contact Type Male Pin
Option GENERAL PURPOSE
Pitch 0.165 4.20mm
Orientation Straight
Depth 23.9mm
Current Rating 9A
Voltage - Rated AC 600V
Approval Agency CSA
Number of Contacts 10
Contact Gender Male
Housing Color Natural, Black
Operating Supply Voltage 600V
Insulation Resistance 1GOhm
Row Spacing 0.165 (4.20mm)
Note Contacts Not Included
Max Voltage Rating (AC) 600V
Wire/Cable Type Discrete
Sealable No
Contact Termination Crimp
Insulation Diameter 3.0988 mm
Contact Retention Without

Dimensions

Height 9.6mm
Length 22.2mm
Width 23.876mm

Compliance

REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
